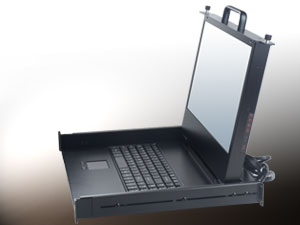

Short Depth DKM-HD17 & DKM-SD17
The DKM-HD17 and DKM-SD17 series are our 1U rack KVM consoles designed for shallow depth equipment racks. At just 16" in total depth (including the LCD flip up handle), you can fit the unit in shallow depth cabinets and transportable rack cases. And with its rear mounting brackets that can be extended up to 24.5" of flange -to-flange distance, it will also accomodate standard racks. The 17.3" wide screen LCD is LED backlit and has either 1920x1080 (HD series) or 1600x900 (SD series) resolution.
Product models:
- DKM-HD17U and DKM-SD17U are USB models. They come with two USB connectors for your keyboard and mouse ports, and a choice of VGA or DVI video cable for your video output.
- DKM-HD17P and DKM-Sd17P are PS2 models. They come with PS2 connectors for your keyboard and mouse ports, and a choice of VGA or DVI video cable for your video output.
DKM-SX17 with 17" LCD
The DKM-SX17 series is a rack-mountable pull-out drawer that occupies only 1 rack unit space. It has a 17" SXGA LCD with 1280 x 1024 resolutio. An on-screen display (OSD) menu using four front-panel-mounted control buttons let's you adjust the display for optimum viewing.
The entire keyboard video mouse rackmount drawer is constructed of metal for ruggedness. The DKM-SX17 is available in USB and PS/2 models to support your choice of keyboard/mouse interface.
At just over 17" in depth, you can fit the unit in short-depth cabinets. And with the rear mounting brackets that can be extended from up to 30", it will also accomodate the deepest equipment racks.
DKM-UX20M with 20" IPS Panel LCD
The DKM-UX20M LCD monitor keyboard drawer comes with a large 20 inch IPS panel LCD monitor. It has 1600x1200 resolution, high contrast ratio and wide viewing angles, which give your display accurate colors and reveals subtle shades in you images.
When it comes to navigating a graphical user inteface, a mouse offers much better point-and-click precision than a touchpad pointing device. The DKM-UX20M has a mouse pad for mouse movement and a convenient storage compartment for the included PS2 mouse. The input/output interface is VGA and PS2. The rack mount slide out drawer occupies 2U rack space.
DMK-920 Dual Rail Series
The DMK-920 series (replacing the DMK-520 series) rack KVM console is equipped with two sets of slide rails. The LCD monitor and keyboard are mounted on separate slide rails. This feature lets you independently extract the LCD or keyboard drawer. Slide-away the keyboard when you don't need it. The DMK-520 comes with a 17" LCD with 1280x1024 resolution.
Product models:
- DMK-920S17U is an USB model. Its KVM cable comes with VGA and USB connectors.
- DMK-920S17P is a PS2 model (replacing the DMK-520S17). Its KVM cable comes with VGA and two PS2 connectors.

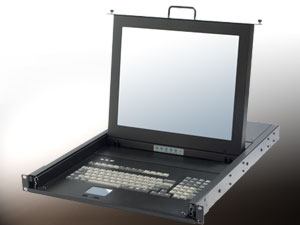

SMK-920 Series
The SMK-920 series is available with a 17" or 19" LCD, USB and PS2 interface. It's designed for standard 19 inch equipment racks. Cherry keyboard and touchpad mouse are standard in this series.
Product models:
- SMK-920S17U is an USB model with a 17" LCD. Its KVM cable comes with VGA and USB connectors.
- SMK-920S17P is a PS2 model with a 17" LCD. Its KVM cable comes with VGA and two PS2 connectors.
- SMK-920S19U is an USB model with a 19" LCD. Its KVM cable comes with VGA and USB connectors.
- SMK-920S19P is a PS2 model with a 19" LCD. Its KVM cable comes with VGA and two PS2 connectors.
DMK-980 Dual Rail Series
The DMK-980 series rack KVM console is equipped with two sets of slide rails and a 8-port KVM switch. The slide-out LCD monitor and keyboard drawer are mounted on separate slide rails. This feature lets you independently extract the LCD or keyboard drawer. Slide-away the keyboard when you don't need it. The DMK-580 series comes with a 17" LCD with 1280x1024 resolution.
Product models:
- DMK-980S17D is a dual interface model that suports both PS/2 and USB. Connect the KVM switch to your computers with the included USB or PS/2 type KVM cables. Eight cables are included and you may choose the type of KVM cables.
- DMK-980S17P is a PS/2 model (replacing the DMK-580S17). Its KVM switch supports only PS/2 keyboard and mouse interface. Eight KVM cables are included and each cable comes with VGA and two PS/2 connectors.

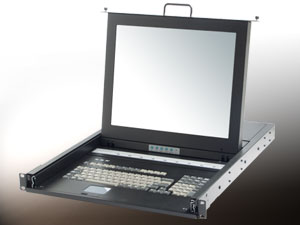

SMK-980 with 8-port KVM Switch
The SMK-980 series is available with a 17" or 19" LCD and a 8-port KVM switch. The KVM switch comes in PS/2 only or dual interface that supports both PS/2 and USB interfaces. Each unit comes with eight KVM cables. And in the dual interface models, you may choose the type of KVM cables for your rack console.
Product models:
- SMK-980S17D has a 17" LCD and a dual interface KVM switch that suports both PS/2 and USB.
- SMK-980S17P is a PS2 model with a 17" LCD. Its KVM interface supports VGA and PS2 keyboard/mouse.
- SMK-980S19D has a 19" LCD and a dual interface KVM switch that suports both PS/2 and USB.
- SMK-980S19P is a PS2 model with a 19" LCD. Its KVM interface supports VGA and PS2 keyboard/mouse.
DMK-990S17D Dual Rail Rack Console
The DMK-990D rack KVM console is equipped with two sets of slide rails. The slide-out LCD monitor and keyboard drawer are mounted on separate slide rails. This feature lets you independently extract the LCD or keyboard drawer. Slide-away the keyboard when you don't need it.
The DMK-990D has a 17" LCD with 1280x1024 resolution. There is a dual interface 16-port KVM switch that supports both PS/2 and USB interfaces.

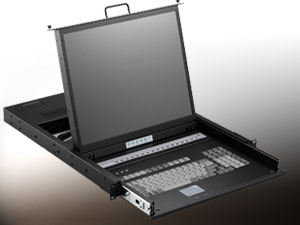

SMK-990 with 16-port KVM Switch
The SMK-990 series is available with a 17" or 19" LCD and a 16-port KVM switch. The KVM switch comes in PS/2 only or dual interface that supports both PS/2 and USB interfaces. Each unit comes with sixteen KVM cables. And in the dual interface models, you may choose the type of KVM cables for your rack console.
Product models:
- SMK-990S17D has a 17" LCD and a dual interface KVM switch that suports both PS/2 and USB.
- SMK-990S17P is a PS2 model with a 17" LCD. Its KVM interface supports VGA and PS2 keyboard/mouse.
- SMK-990S19D has a 19" LCD and a dual interface KVM switch that suports both PS/2 and USB.
- SMK-990S19P is a PS2 model with a 19" LCD. Its KVM interface supports VGA and PS2 keyboard/mouse.
