The MPC-1730 is a rugged portable workstation designed to let you take a multiple screen PC platform into the field for your video monitoring, data acquisition applications. Using a workstation-class motherboard, it supports a multi-core processor up to ten cores, up to 256GB of main memory, and more than 4TB of storage.

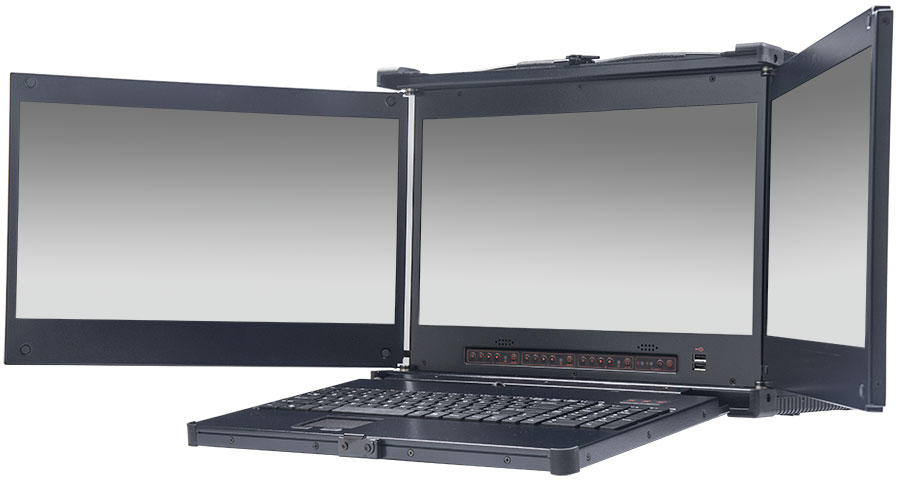

The MPC-1730 has three wide-screen 17.3” LCDs, 1920x1080 resolution per
With an OS that supports multiple screens such as Microsoft Windows, you can setup three 1920x1080 desktops, or
work with an extended screen of 5760x1080 resolution.
Portable Workstation with Slots
The MPC-1730 t takes advantage of COTS (commercial-off-theshelf) PC components for its substantial expansion and upgrade capabilities.

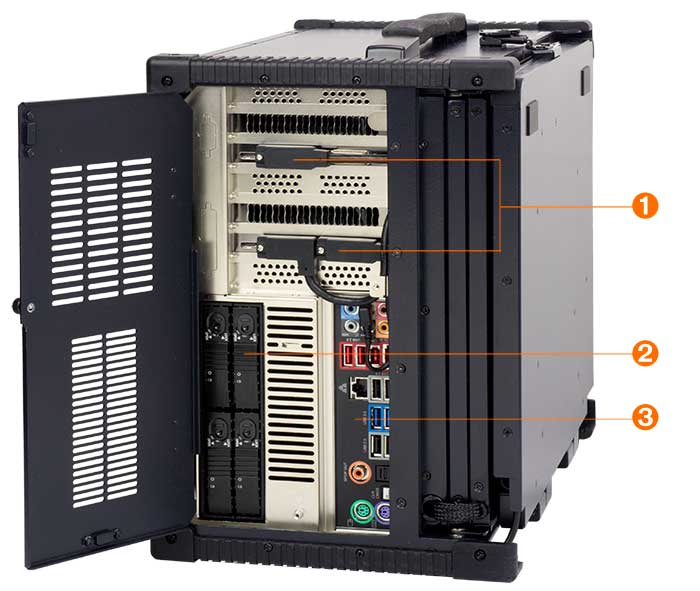

1. Two installed video cards with output ports connected to three screens (to drive all three LCDs, you may choose a single video card or two cards in SLi or CrossFire mode).
2. A 4-disk mobile rack installed in the 5.25" drive bay. Each removable tray supports a 2.5" SATA hard drive, up to 1TB each.
3. Motherboard input/output ports.
1. Removable 2.5" drive bay for hard drive or SSD.
2. Slim optical disk drive.
3. Power supply.
4. 12cm ventilation fan.
5. Power supply fan vents.
6. 12cm ventilation fan.
A Transport Case is Included
The MPC-1730 comes with a transport case.

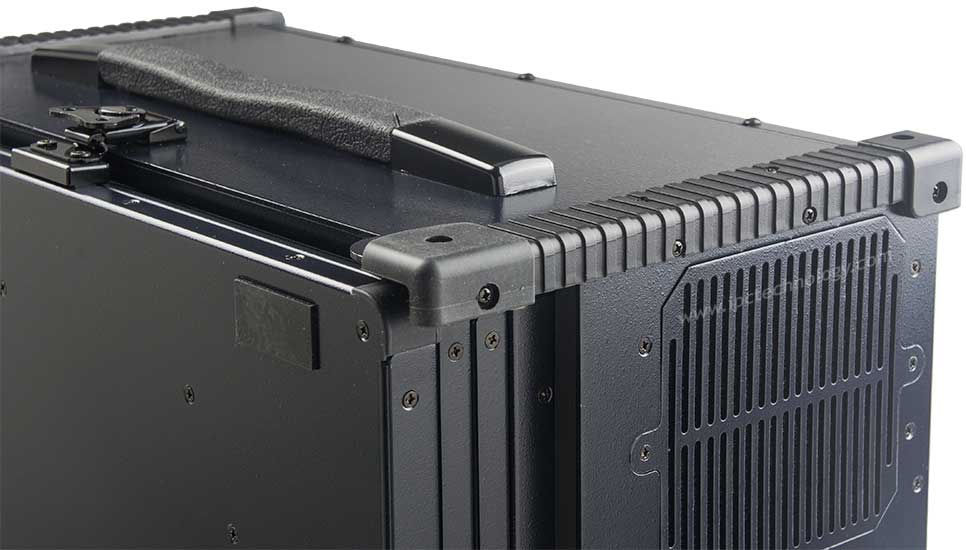

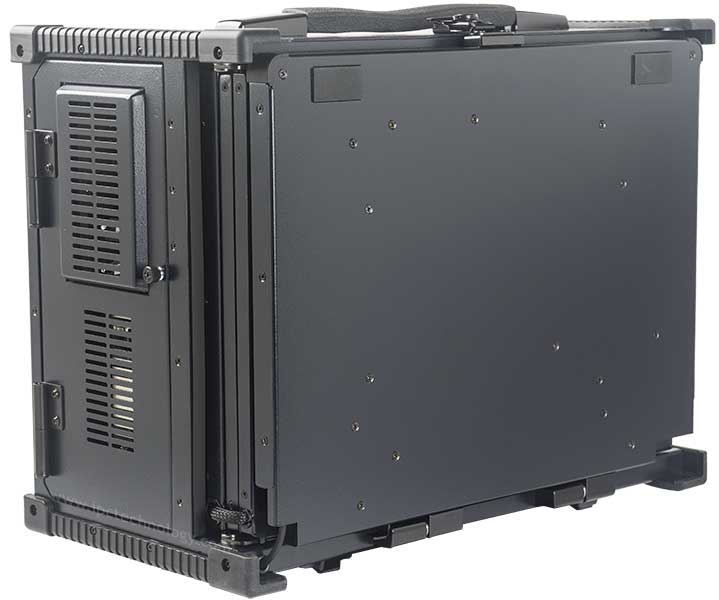

Rugged system chassis constructed of aluminum alloy.
Integrated LCDs and fold-down keyboard.
Rubber bumpers on corners.
Rubber-clad carrying handle.
Tilt-up feet under chassis and keyboard.

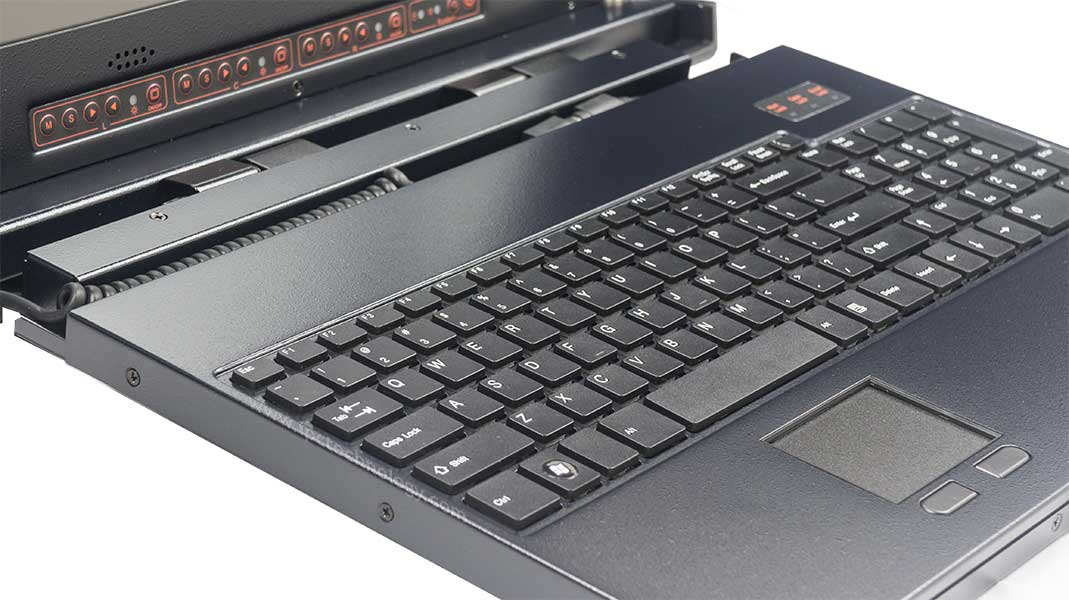

Detachable keyboard with integrated touchpad pointing device.
Two 12cm cooling fans.
Three 17.3” LCD monitors with LED backlight.
1920x1080 resolution per screen.

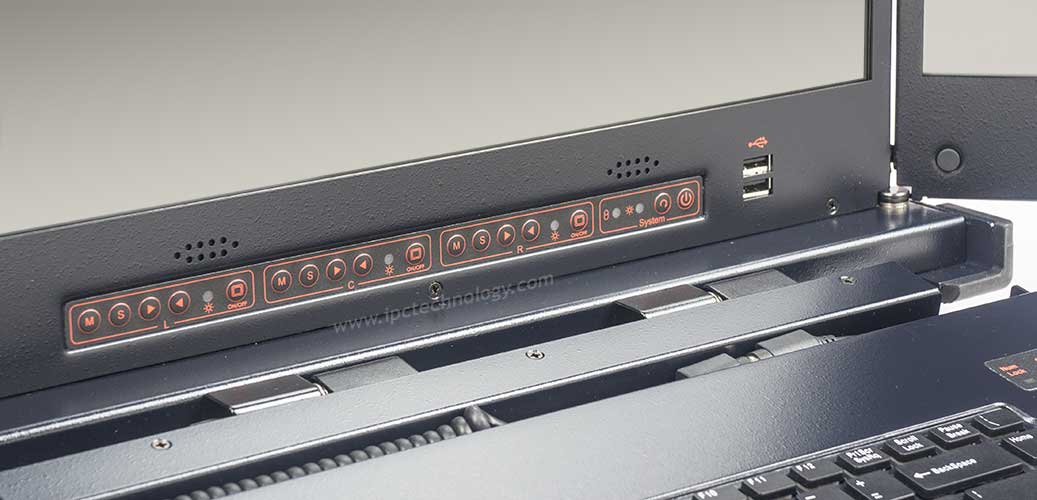

Independently adjustable monitor brightness, contrast.
Backlight on/off switch for each screen.
Luminance: 300 nits.
Contrast Ratio: 400.
Response Time: 8ms typical.
Supported Colors: RGB 6-bit, 252K colors.
Viewing Angles (U/D/L/R): 60/60/70/70.
Flat Panel Displays
One 5.25" drive bay.
One 2.5" removable disk drive bay.
Two internal 3.5" disk drive bays.
Two internal 2.5" disk drive mounting spaces.
One slim optical disk drive bay.
17.25” (W) x 14.0” (H) x 9.5” (D) with LCD panels closed.
47.625” (W) x 14.0” (H) x 9.5” (D) with left and right LCD panels open.
System weight: approximately 35 lbs.
Shipping weight: approximately 55 lbs (actual weight depends on system configuration).
Input: AC 100 ~ 240 V, 50 ~ 60 Hz, full range (PFC).
Output: 650 watt power supply standard; upgrades available.
Electrical and Power
Temperature: Operating—0~50 °C (32~122 °F); non-operating— -20~60 °C (-4~140 °F).
Humidity: 5~95% @ 40 °C, non-condensing.
Altitude: Operating—15000 ft. Non-operating—40000 ft.
Shock: Operating—half-sine wave @ 15 G, 11 ms duration on ±x, ±y, ±z directions, 3 times per face, @ 20°C, 65% RH.
Non-operating—half-sine wave @ 50 G, 11 ms duration on ±x, ±y, ±z directions, 3 times per face, @ 20°C, 65% RH.
Vibration: Operating—20-60 HZ, 0.075 mm sine wave sweep in XYZ directions for 0.5 hrs @ 20°C, 60% RH.
Non-operating—10-50 Hz, 0.15 mm sine wave sweep in XYZ directions for 0.5 hrs. @ 20°C, 60% RH.
16GB quad channel DDR4 DRAM installed, up to 256GB.
NVidia GTX-950 2GB graphics card.
Wired and Wireless Connectivity
Dual 10/100/1000Mbps LAN with Intel I218V and Intel I211-AT.
WiFi IEEE 802.11 a/b/g/n/ac.
Bluetooth 4.0 / 3.0 +high speed class II.
Storage Device Controller
10x SATA 6Gb/s.
1x SATA Express 10Gb/s Connector (shared with SATA3_4 and SATA3_5).
1x Ultra M.2 Socket (M2_2), support type 2230/2242/2260/2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s).
1x Ultra M.2 Socket (M2_1), support type 2230/2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s).
SATA RAID support 0/1/5/10.
Installed Storage Devices
One 250GB SSD.
One slim-type DVD +/- RW optical disk drive.
Realtek ALC1150, 7.1 channels audio.
1x PS/2 mouse/keyboard port.
2x RJ-45 LAN ports.
2x coaxial antenna connectors.
1x Optical SPDIF Out port.
1x USB 3.1 Type-A port (10 Gb/s).
1x USB 3.1 Type-C port (10 Gb/s).
3x USB 3.0 ports.
3x USB 2.0 ports.
HD Audio Jacks: rear speaker, central, bass, line in, front speaker, microphone.
3x PCI Express 3.0 x16 Slots (supports NVMe SSD as boot disk).
2x PCI Express 2.0 x1 Slot.s
1x vertical M.2 socket (Key E), supports type 2230 WiFi/BT module (the M.2 socket does not support SATA M.2 SSDs).
Contemporay MicroSystems accepts the following payment methods:
Purchase Orders—We accept academic, research institution, local, state and federal government agencies, and corporate purchase orders. Standard terms is net 30.
Credit Cards—We accept payment with credit cards. Please call (626)487-7034 to order. Visa, Mastercard, American Express are accepted. We do not accept international credit cards at this time. However, if you reside outside of the United States and Canada, you can email us your purchasing and shipping requirements. We'll prepare a proforma invoice as acknowledgement.
This is a build-to-order system and usually takes 10 business days to ship after we receive your order.
