The PPC-125F is a series of fanless and silent industrial panel PCs designed to serve as a friendly human-machine interface for easy integration into any space-constricted embedded applications. It provides full PC functionality within its slim and light weight alumnum chassis.

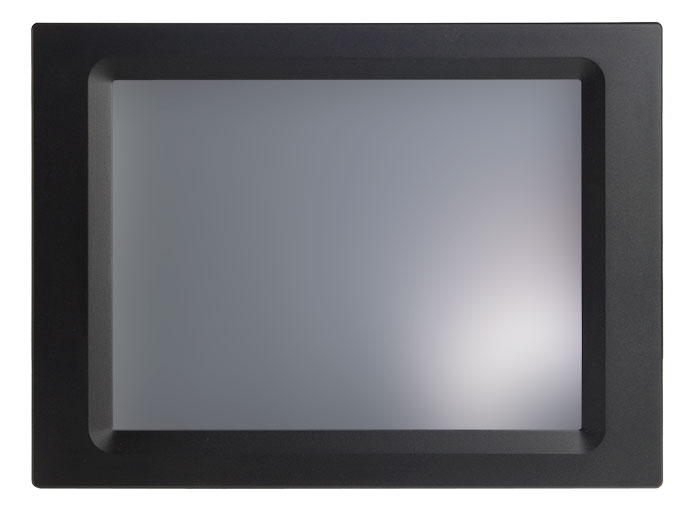

Its LCD screen comes in 15", 17" and 19" 4:3 aspect ratio and 21.5" wide screen sizes. It supports resistive or capacitive touch screens. The front panel is IP-65 rated, and because it does not rely on active cooling, it making it a great choice for operating in harsh industrial environments.
The PPC-125F series come with a quad-core Intel Celeron J1900 processor and supports up to 8GB of RAM.
The PPC-125F panel PC comes with an Intel Celeron™ J1900 quad-core 2.0GHz processor. The conductive cooled system uses the aluminum housing as heat sink. System integrated features include:

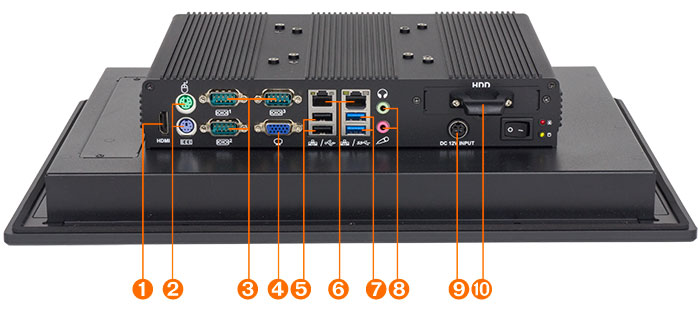

1. HDMI port.
2. PS2 keyboard/mouse connectors.
3. Three serial ports: COM1, COM2, COM3. COM ports RS-232/422/485 selectable via BIOS setting; default RS-232.
4. VGA port for simultaneously displaying the screen on an external monitor.
5. Two USB 2.0 ports (four onboard via header connectors).
6. Dual LAN RJ-45 10/100/1000 Base-T ports.
7. Two USB 3.0 ports (two onboard via header connectors).
8. Audio mic-in and line-out jacks.
9. 12V DC in jack.
10. Removable 2.5" SATA hard drive bay.

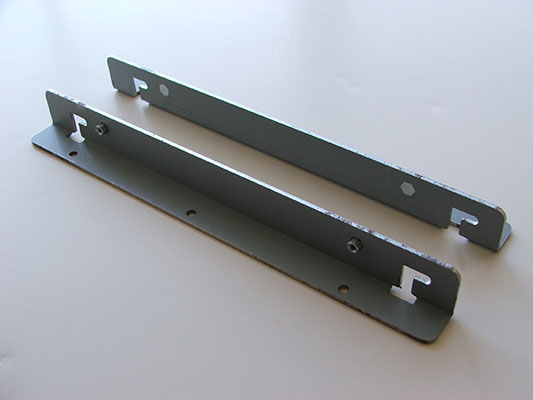

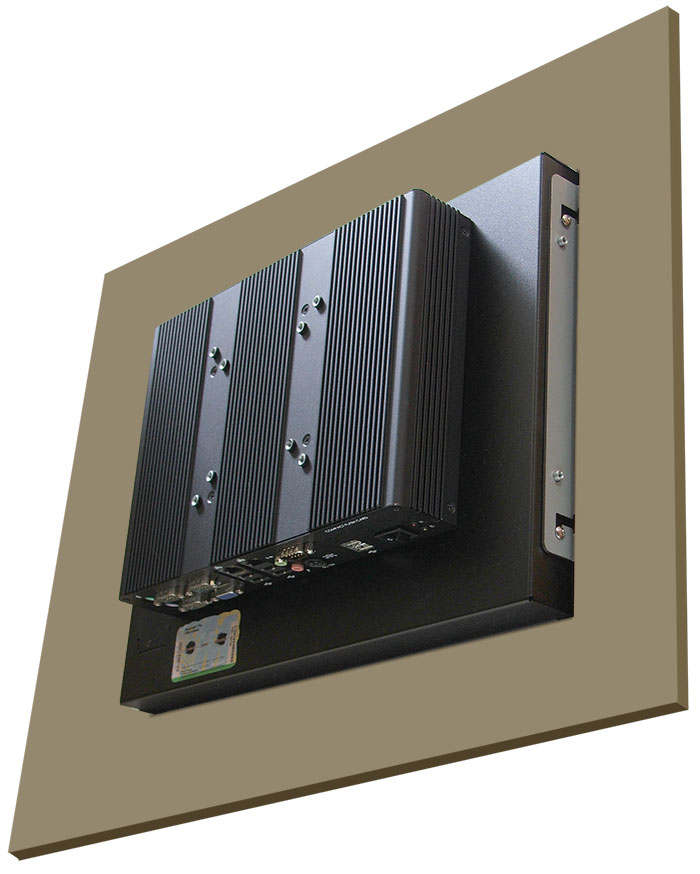

The PPC-125F series with standard 4:3 aspect ratio screens can be panel mounted, wall mounted, or VESA mounted, and comes with a pair of mounting brackets. This picture illustrates a possible panel-mounting method using the panel mounting brackets.
The 21.5" wide screen model supports VESA mounting.

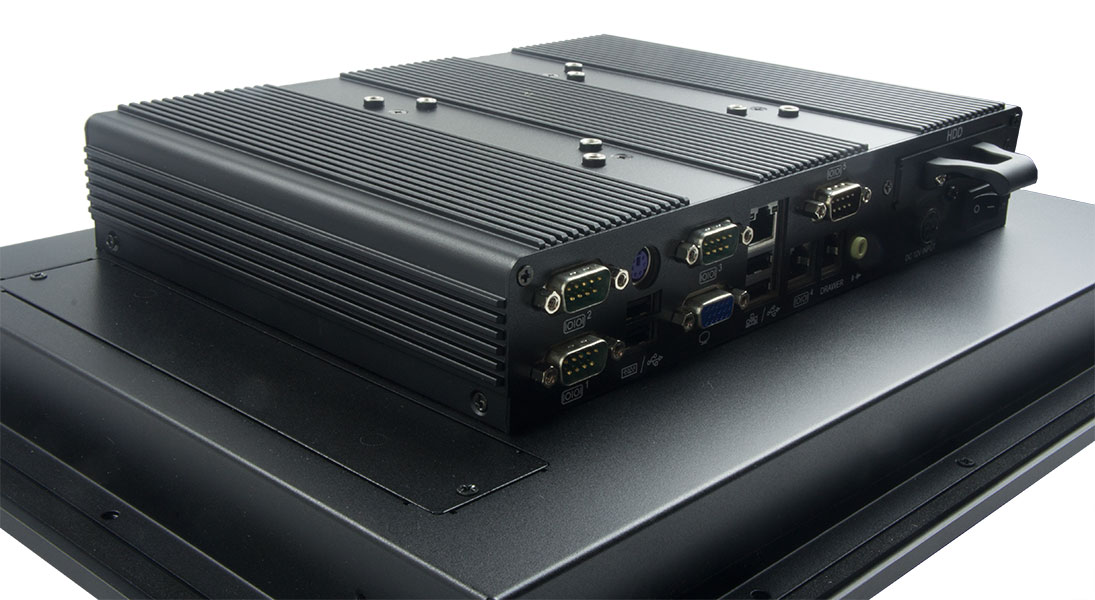

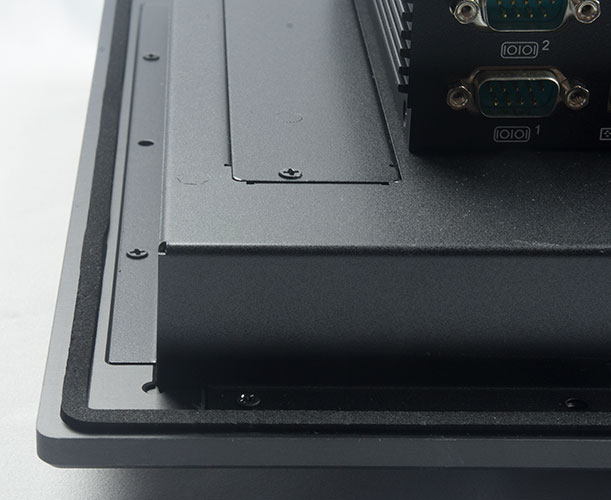

Aluminum housing with aluminum front bezel.
Aluminum housing used as heat sink for processor and system heat dissapation.
Front panel with seal is NEMA 4 (IP65) ingress protection rated.
Screen Sizes and Features:
15" LCD: 1024 x 768 resolution (XGA), 250 nits.
17", 19" LCD: 1280 x 1024 resolution (SXGA), 250 nits.
21.5": 1920x1080 resolution, 250 nits.
24-bit color depth (16 million colors).
70 degrees up/down/left/right viewing angles (typical).
8ms response time (typical).
Analog resistive touch screen.
RS-232 touch screen interface.
Input method: finger, gloved hand or touch stylus.
Optical transmittance: 83% ± 5%.
Touch activation force: Typically less than 125g.
Operating temperature: -10°C to 60°C, less than 90% RH.
Storage temperature: -40°C to 75°C, less than 90% RH.
High temperature and humidity operating: 60°C at 90% RH for 120 hours.
Surface durability: 3H or higher per ASTM-D3363
Touch Life:
Pen sliding: more than 500K times.
Pen hitting: more than 10M times.
Finger touch: more that 35M times.
Edge-to-edge design offers a sealed, flush, easy to clean surface.
Better light transmission--up to 90%.
RS-232 touch screen interface.
Input method: finger, gloved hand or touch stylus.
Optical transmittance: 83% ± 5%.
Touch activation force: Typically less than 125g.
Operating temperature: -10°C to 60°C, less than 90% RH.
Storage temperature: -40°C to 75°C, less than 90% RH.
High temperature and humidity operating: 60°C at 90% RH for 120 hours.
Surface durability: 3H or higher per ASTM-D3363
Touch Life:
Pen sliding: more than 500K times.
Pen hitting: more than 10M times.
Finger touch: more that 35M times.
Intel® Celeron™J1900 processor (2.0GHz/2MB cache)
Two 204-pin SO-DIMM sockets support up to 8GB DDR3L SDRAM.
Chipset integrated Intel Gen7 Graphics DX11,OGL3.2.
Dual Realtek RTL8111G-CG 10/100/1000 Base-T fast ethernet.
Integrated Realtek ALC662 HD audio codec.
Storage:
2x 2.5" SATA ports (300MB/s).
Expansion:
mini-PCIe slot (half size; used for PCI Express mini
cards).
mini-SATA slot (full size, shared with the SATA2_2 port; used for mSATA cards).
PCIE x1 slot.
I/O Ports:
3xDB-9 (Com1,2,3). RS-232/422/485 selectable via BIOS setting (default RS-232). All COM ports are 5V and 12V selectable via jumper setting (default no power).
4 USB ports (2 USB 3.0, 2 USB 2.0 ports on I/O panel; 2 USB 3.0 on internal header connector, 4 USB 2.0 on internal header connectors).
2 RJ-45 ethernet jacks.
2 PS2 keyboard mouse ports.
1 VGA, 1 HDMI for external monitor.
1 line-out, 1 mic-in audio jacks.
Dimensions:
15": 392(w) x 302(H) x 76(D)mm
17": 425(w) x 344(H) x 82 (D)mm
19":
21":
Weight:
15"/17" models weigh approximately 12/16 lbs. respectively.
Input: DC 12V (84 watt AC adapter, 100-240 VAC, 50-60 Hz).
Operating temperature: 0 ~ 40°C (32 ~ 104°F)
Storage temperature: -20 ~ 60°C
Humidity: 10% ~ 90%
Compliance: CE, FCC, RoHS.
