Configuration A—Intel® Sandy Bridge Xeon Quad-Core Processor Workstation

  • Enclosure
  • MPC-2900 portable chassis.
  • 20" UXGA IPS panel LCD monitor.
  • Motherboard
  • Dual socket LGA1356 server board supporting Intel® Xeon E5-2400 series processors.
  • Processor & Chipset
  • Two Intel Xeon quad-core E5-2403 processors, LGA1356, 1.8GHz, 10MB L3 cache.
  • Intel C606A PCH.
  • Main Memory
  • 32GB installed.
  • 6 DIMM sockets (3-channel per CPU, 3 DIMM per CPU).
    Maximum up to 192GB ECC registered memory or up to 48GB ECC/non-ECC unbuffered memory.
  • Graphics
  • Integrated Aspeed AST1300 graphics controller with 64MB VRAM.
  • LAN Connectivity
  • Two Intel 82574L 10/100/1000Mbps fast ethernet controllers.
  • Storage Device Controller
  • Intel® C602-A AHCI controller.
    4x SATA2 3Gb/s ports.
    2x SATA3 6Gb/s ports.
    Intel® Rapid Storage Technology Enterprise(RSTe) (for Windows only) support software RAID 0, 1, 5, 10.
  • Installed Storage Devices
  • One 320 GB SATA hard drive.
    One DVD read/write optical disk drive.
  • Audio
  • None.
  • Input/Output
  • 4x USB 2.0 ports.
    1x PS/2 keyboard/mouse port.
    1x serial port.
    2x RJ45 LAN ports.
    1x VGA port.
  • Expansion Slots
  • 1x PCI-E x16 slot (Gen3 X16 Link).
    2x PCI-E x8 slots (Gen3 X8 Link).
    1x PCI-E x8 slots (Gen2 X4 Link).
    1x PCI-E x1 slot (Gen2 X1 Link), MIO supported.
  • Operating System
  • Microsoft® Windows® 7 Professional, 64-bit installed.
  • Power Supply
  • 650-watt.
  • Price as Configured: $4600

Configuration B—Intel® Sandy Bridge Xeon Six-Core Processor Workstation

  • Enclosure
  • MPC-2900 portable chassis.
  • 20" UXGA IPS panel LCD monitor.
  • Motherboard
  • Dual socket LGA 2011 server board supporting Intel® E5-2600 series Xeon processors.
  • Processor & Chipset
  • Two Intel Xeon six-core E5-2620 Sandy Bridge-EP processors, LGA 2011 2.0GHz 15MB L3 cache.
  • Intel C602-A PCH.
  • Main Memory
  • 32GB DDR3-1600 quad channel main memory installed.
  • 8 DIMM sockets (4-channel per CPU, 4 DIMM per CPU).
    Maximum up to 256GB LRDIMM.
  • Graphics
  • Integrated Aspeed AST2300 graphics controller with 16MB VRAM.
  • LAN Connectivity
  • Two Intel 82574L 10/100/1000Mbps fast ethernet controllers.
    1x Mgmt LAN.
  • Storage Device Controller
  • Intel® C602-A AHCI controller.
    4x SATA2 3Gb/s ports.
    2x SATA3 6Gb/s ports.
    Intel® Rapid Storage Technology Enterprise(RSTe) (for Windows only) support software RAID 0, 1, 5, 10.
    LSI® MegaRAID (For Linux/Windows) support software RAID 0, 1, 10.
  • Installed Storage Devices
  • One 320 GB SATA hard drive.
    One DVD read/write optical disk drive.
  • Audio
  • Realtek ALC898 7.1 channels audio.
  • Input/Output
  • 2x USB 3.0 ports.
  • 2x USB 2.0 ports.
    1x PS/2 keyboard/mouse port.
    1x serial port.
    2x RJ45 LAN ports.
    1x Mgmt LAN.
    1x VGA port.
  • Expansion Slots
  • 2x PCI-E x16 slots.
    2x PCI-E x8 slots.
    1x PCI-E x4 slots.
    1x PIKE slot for storage expansion.
  • Operating System
  • Microsoft® Windows® 7 Professional, 64-bit installed.
  • Power Supply
  • 650-watt.
  • Price as Configured: $5200
mpc2900_gallery0

  • mpc2900_gallery0
  • mpc2900_gallery5

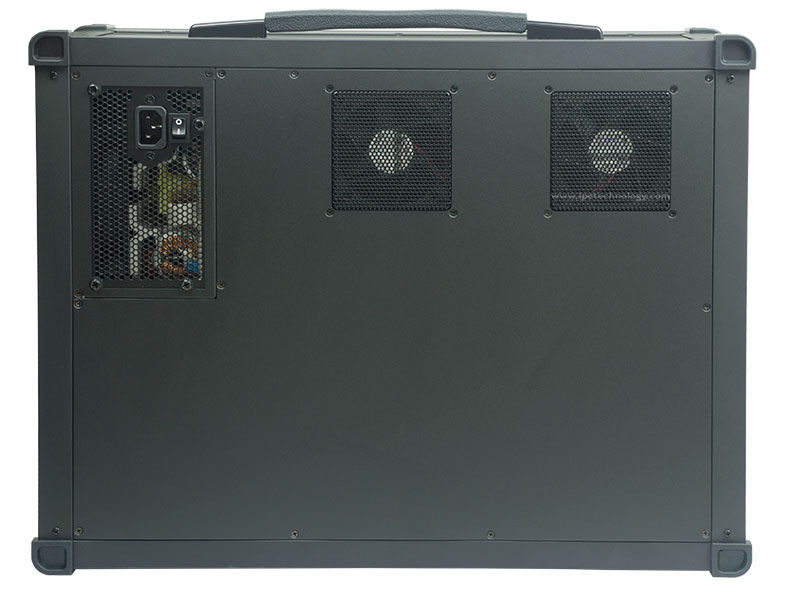

    MPC-2900 back side view.
  • mpc2900_gallery1

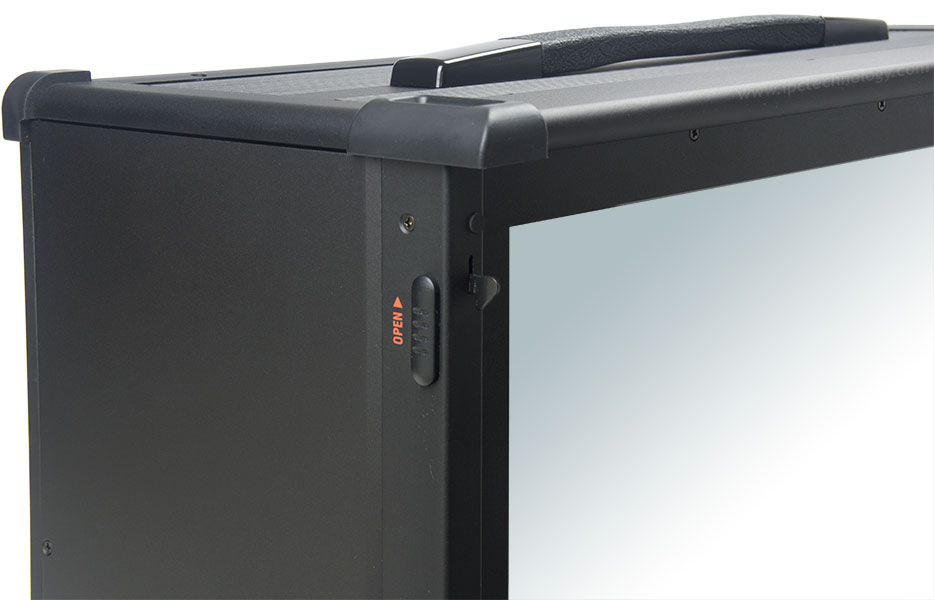

    MPC-2900 chassis details.
  • mpc2900_gallery2

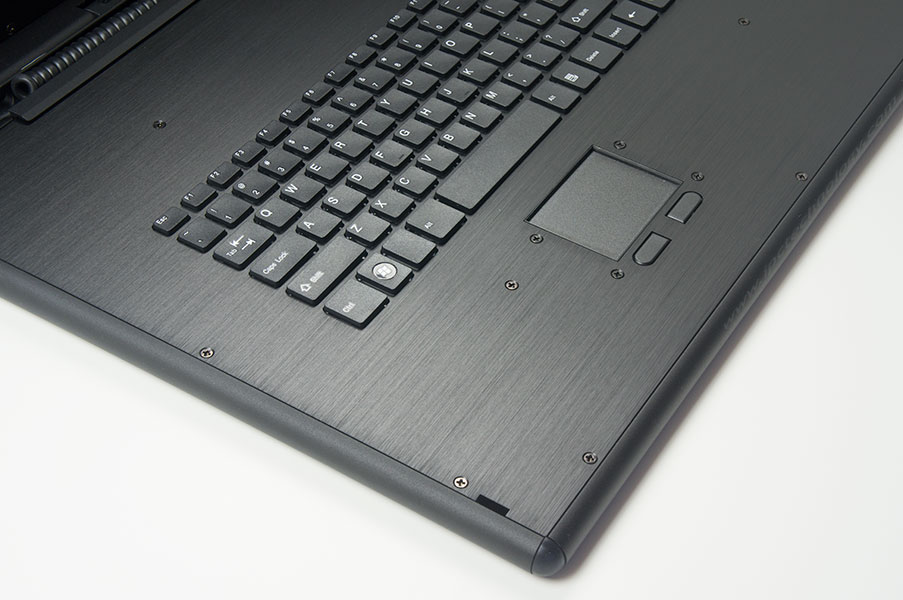

    MPC-2900 keyboard details. Full size keyboard with low-profile, low-travel, flat keycaps keys (chiclet style).
  • mpc2900_gallery3

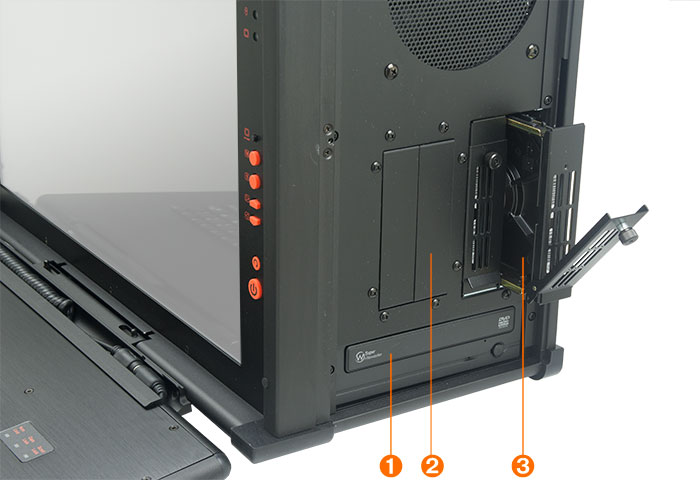

    MPC-2900 right side drive bays: fixed and removable hard drive bays and 5.25" drive bay.
  • mpc2900_gallery4

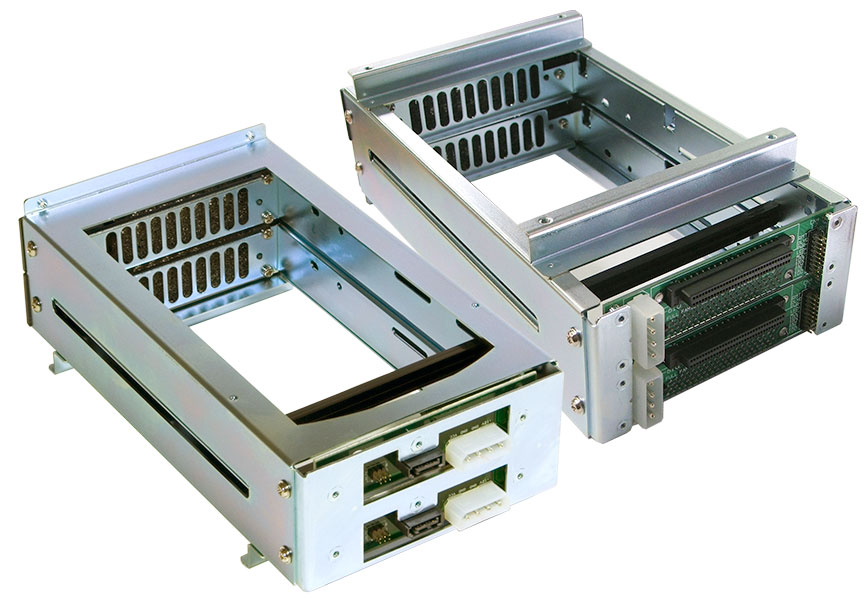

    Removable hard drive carrier for SATA and SCSI disk drives.
