MPC-9000 ruggedized portable PC has a anodized aluminum alloy enclosure

This model has been discontinued

The MPC-9000 is a compact, self-contained portable computer ruggedized for mobile computing applications in harsh environemnts. The lunch box style enclosure is constructed of anodized aluminum alloy. Corner rubber bumpers add to its protection against bumps and shock.

The MPC-9000 supports commercial off-the-shelf PC components. You can select from a wide array of processors and components to assemble a system that meets your needs today, and still have room for expansion and upgrades tomorrow.

MPC-9000 uses COTS PC motherboards. It supports up to seven expansion slots

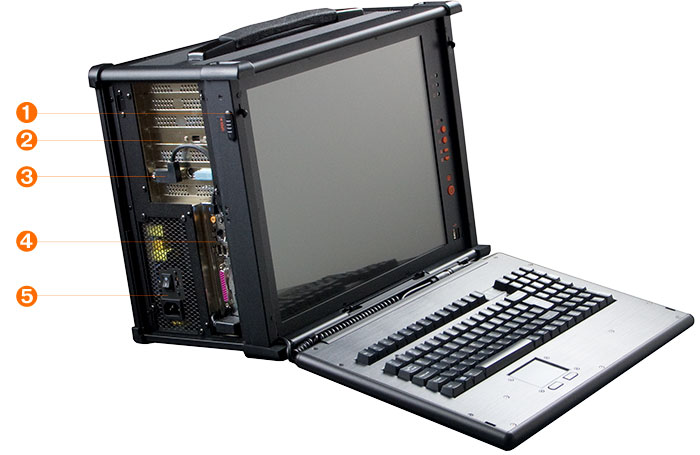

Portable Computer with Slots

The MPC-9000 supports industry standard motherboards—ATX, Micro-ATX and Mini-ITX form factors. This means the latest PC desktop and workstation technologies are readily available.

1. Keyboard hook.
2. Expansion slots—up to seven slots.
3. Internal video cable attached to video card output port.
4. Motherboard input/output ports.
5. Power supply.

MPC-9000 lets you install multiple hard disk drives, hot-swap drives, RAID array

Drive Bays and Storage Options

With two externally accessible 5.25" drive bays and slim drive bays you can add:
1. A slim type optical disk drive.
2. A removable 3.5" hard drive mobile rack that supports three disk drives, or
3. one or two removable 2.5" hard drive mobile racks that support four disk drives each in the 5.25" drive bays.

Two internal drive bays suppot two more 3.5" hard drives.

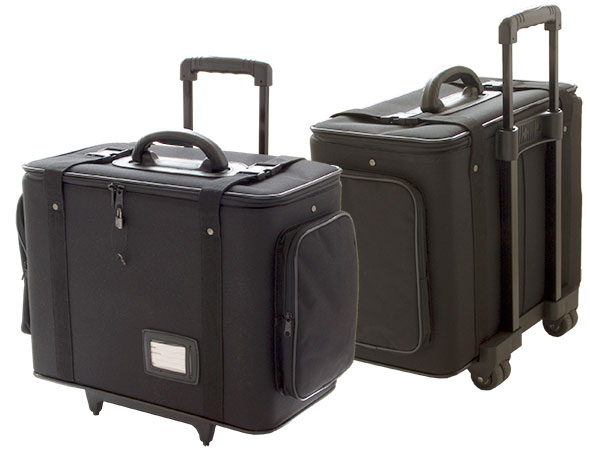

For long distance transport, the MPC-9000 includes a padded travel case

A Transport Case is Included

MPC-9000 comes with a soft transport case with wheels and telescopic handle.

Portable system chassis constructed of aluminum alloy.
Hard anodizing surface: MIL-A-8625E Type II/III.
Integrated flat panel display and fold-down keyboard.
Rubber bumpers on corners.
Rubber-clad carrying handle.
Tilt-up feet under chassis.
Built-in speaker.
Detachable keyboard with integrated touchpad pointing device.
Two 12 cm cooling fans.

Enclosure Construction

17" LCD, 1280 x 1024 resolution.
Contrast Ratio: 350:1.
Brightness (cd/m²): 250.
Response Time (ms): 35ms.

Flat Panel Display

Two 5.25" drive bays.
Two internal 3.5" drive bays.
One slim optical disk drive bay.

Storage Space

Enclosure dimensions: 17.2" (W) x 13.4" (H) x 9.3" (D).
System weight: approximately 35 lbs. with a fully configured system.
Transport case measures 25” x 20” x 14”.
Shipping carton dimensions: 26.5" (L) x 17" (W) x 22" (H).
Shipping weight (includes transport case): approximately 58 lbs for a fully configured system.

Physical Specs

Input: AC 100 ~ 240 V, 50 ~ 60 Hz, full range (PFC).
Output: 650 watt power supply standard; upgrades available.

Electrical and Power

Temperature: Operating—0~50 °C (32~122 °F); non-operating— -20~60 °C (-4~140 °F).
Humidity: 5~95% @ 40 °C, non-condensing.
Altitude: Operating—15000 ft. Non-operating—40000 ft.
Shock: Operating—half-sine wave @ 15 G, 11 ms duration on ±x, ±y, ±z directions, 3 times per face, @ 20°C, 65% RH. Non-operating—half-sine wave @ 50 G, 11 ms duration on ±x, ±y, ±z directions, 3 times per face, @ 20°C, 65% RH.
Vibration: Operating—20-60 HZ, 0.075 mm sine wave sweep in XYZ directions for 0.5 hrs @ 20°C, 60% RH. Non-operating—10-50 Hz, 0.15 mm sine wave sweep in XYZ directions for 0.5 hrs. @ 20°C, 60% RH.

Environmental and Safety

Base Configuration

  • Enclosure
  • MPC-9000 portable chassis.
  • 17" LCD monitor, 1280x1024 resolution.
  • Detachable keyboard with touchpad.
  • Transport case.
  • Motherboard
  • Intel Z390 chipset LGA 1151 motherboard.
  • Processor
  • Intel Core i7-9700 Coffe Lake 3.0GHz 8-core processor.
  • Main Memory
  • 16GB dual channel DDR4 DRAM installed.
  • Graphics
  • Processor integrated Intel UHD Graphics.
  • LAN Connectivity
  • One 10/100/1000Mbps LAN controller.
  • Storage Device Controller
  • 6 x SATA 6Gb/s ports.
    1 x M.2 slot (Key M) supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices.
  • Installed Storage Devices
  • One 250GB SSD.
    One slim-type DVD +/- RW optical disk drive.
  • Audio
  • Realtek ALC892, 7.1 channels audio.
  • Input/Output
  • 1x PS/2 mouse/keyboard port.
    1x DVI port.
    1x VGA port.
    1x DisplayPort.
    1x USB 3.1 Type-A port.
    1x USB 3.1 Type-C port.
    2x USB 3.0 ports
    1x RJ-45 LAN port.
    7-channel audio I/O ports (5+1 audio jacks).
  • Expansion Slots
  • 2 PCI-E 3.0 x16 slots.
    2x PCI-E 3.0 x1 slots.
    1x M.2 slot with E key for Integrated Intel® Wireless-AC(CNVi) module only.
  • Operating System
  • No installed operating system.
  • Power Supply
  • 650-watt.
  • Price as Configured: $3700

Request Price Quotation With Other Options

Use this form to select your desired components for your MPC-9000 portable workstation. If the options don't address all of your requirements, please use the message field of the form to ask for options not available here. Options you select may require a different motherboard from that of the Base Configuration.

Select Processor
Select Amount of Memory
Select Graphics Controller
Connectivity Options
Storage Options
Optical Disk Drive
Expansion Slots
Additional Input/Output Controllers
Select Operating System

Please let us know how to contact you.

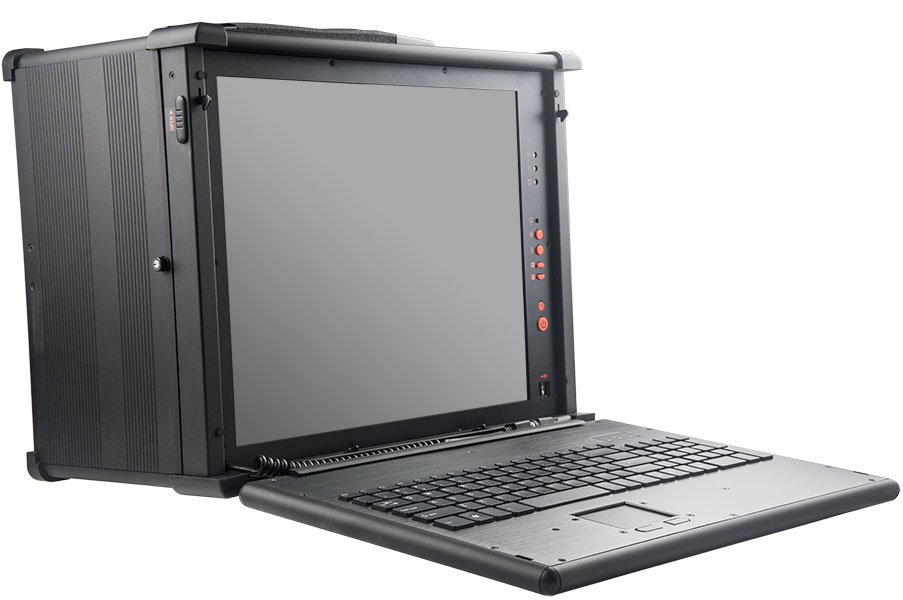

mpc9000_gallery4

  • mpc9000_gallery4
  • mpc9000_gallery1

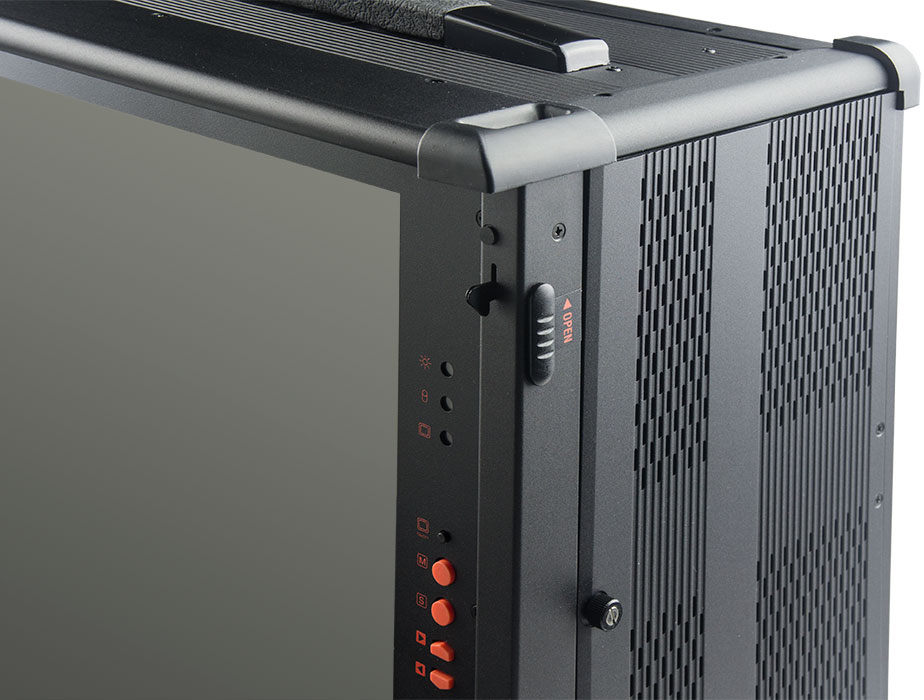

    MPC-9000 system enclosure.
  • mpc9000_gallery2

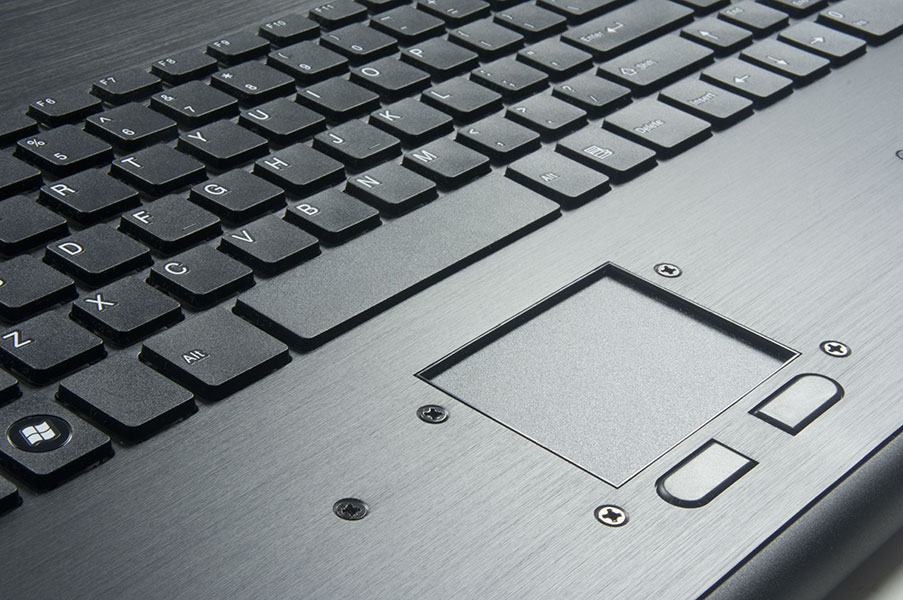

    MPC-9000 keyboard and touchpad. Full size keyboard with low-profile, low-travel, flat keycaps keys (chiclet style).
  • mpc9000_gallery3

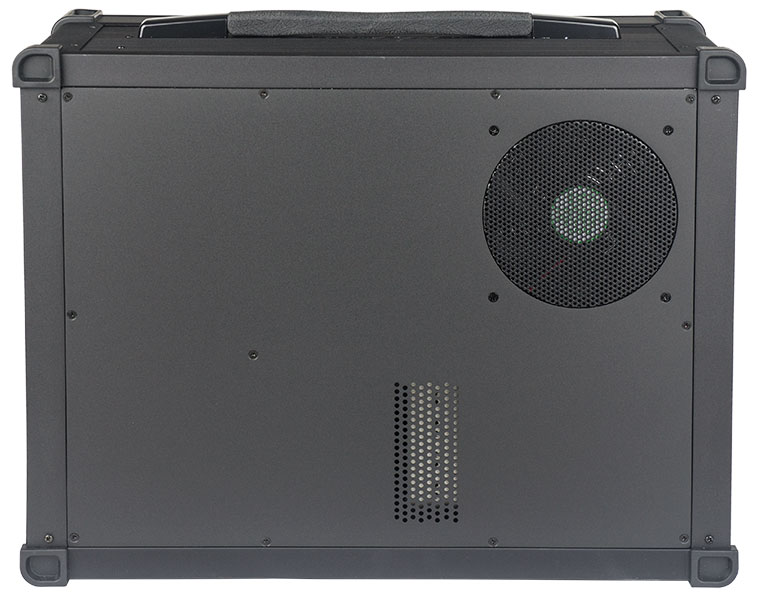

    MPC-9000 back side view.
