Short depth rack KVM console with 1600x900 or 1920x1080 resolution.

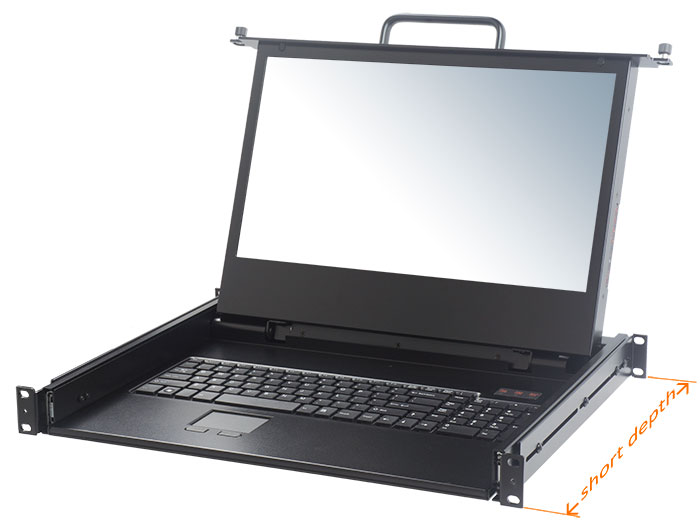

1U Short Depth Rack LCD Console

The DKM-HD17 is a rack-mountable flat panel LCD monitor that occupies only 1 rack unit space. It's designed for 19" equipment cabinets, especially shallow-style racks. The entire KVM (keyboard video mouse) console drawer is constructed of metal for ruggedness. At just 14.5" flange to flange depth (16" including the monitor handle), you can fit the unit in short-depth cabinets. The rear mounting brackets can be extended up to 24.5" making the DKM-HD17 also accomodate standard equipment racks.

The DKM-HD17 series comes with a wide screen, LED backlit 17.3" LCD monitor. It has a resolution of 1920 x 1080 pixels.

Short frame rack mount KVM console. 1600x900 or 1920x1080 LCD, full size keyboard.

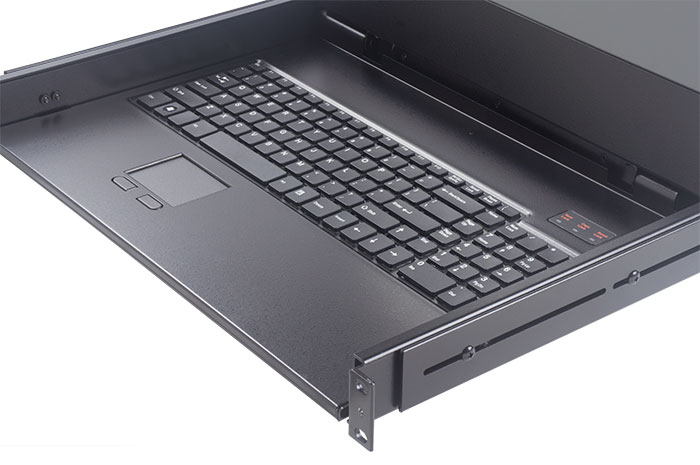

Full Size Keyboard in a Slide Out Rackmount Drawer

The DKM short-depth series of rack KVM consoles provide you with a full size keyboard and touchpad mouse. Using a flip-up monitor design, they offer a low profile rack mount console for your computer. The slide-out LCD monitor and keyboard drawer is mounted on slide rails so you can easily pull the unit out of your equipment rack. The LCD monitor flips up for use and folds down for storage.

USB interface rack console. LCD monitor keybaord for short depth equipment cabinets. LCD with 1600x900 and 1920x1080 resolution.

PS/2 interface LCD monitor keyboard drawer for shallow depth racks. KVM console with short frame kayboard drawer.

KVM Interface

The DKM-HD17 series is available in USB (DKM-HD17U) and PS2 models (DKM-HD17P). The LCD supports either VGA or DVI video input. There is a line-in jack so audio from your computer can be played back through the rack consoles's internal speakers. Included KVM cables are approximately 5 feet in length.

Pictured here are:

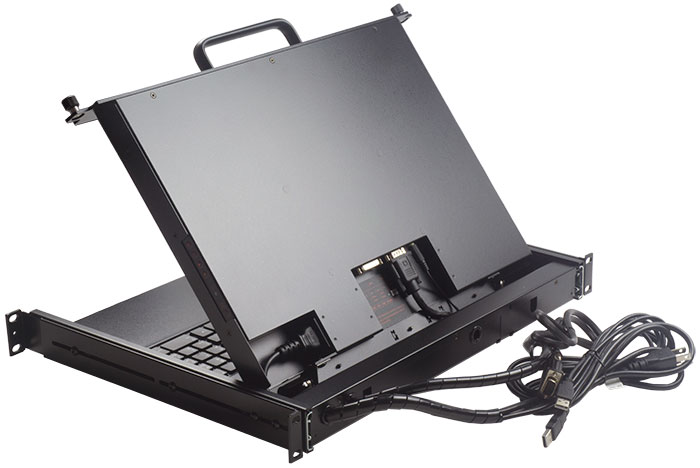

USB model (top) with its KVM cable that has a VGA connector, two USB connectors and a 3.5mm audio plug.

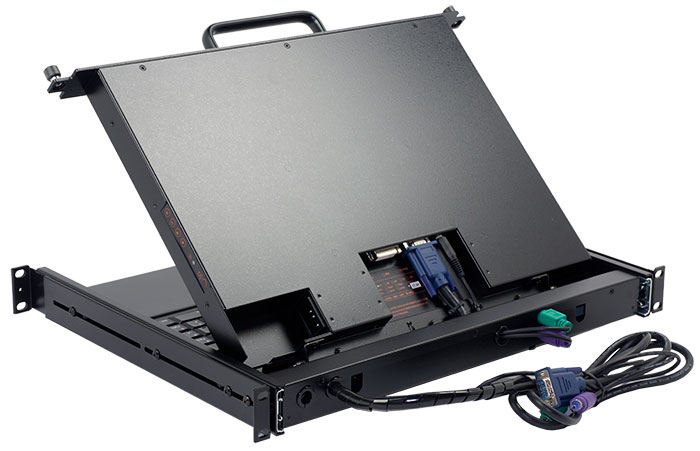

PS/2 model (bottom) with PS2 connectors for keyboard and mouse.

1U slide-out rack mount drawer with LCD monitor, keyboard and touchpad mouse.
Rugged metal construction. Removable slide rails.
19-inch rack mountable.
Flange to flange depth: 14.5".
Flange to flange depth from 14.5" to 24.5" via rear extension bracket.

Construction

Display Size: 17.3-inch, 16:9 aspect ratio LCD (measured diagonally).
Resolution: DKM-HD17 models have 1920 x 1080 resolution LCD.
Color Depth: 262K colors ( RGB 6-bit ).
Active Area (mm): 381.888 X 214.812 .
Contrast Ratio: 400:1.
Brightness (cd/m²): 300.
Response Time (ms): 8ms typical, 16ms max.
View Angles (degrees): 60/60/70/70 (U/D/L/R) .
LCD Panel Interface: 2 channel LVDS .
LCD Backlight Type: LED.
External Interface: DVI, VGA.
KVM video cable: 5-feet KVM cable with D-Sub 15-pin VGA connector, or optional DVI cable.

Flat Panel Display

Keyboard: Full size, 105-key, 12 function keys, 17-key numeric keypad.
Key Switch: Low-profile, low-travel, flat keycaps (chiclet style).
Pointing Device: Two-button touchpad input device.
Keyboard/mouse Interface: PS/2 or USB.
KVM keyboard/mouse cable: 5-feet cable with two USB connectors (DKM-HD17U) or 2 mini-DIN PS2 keyboard and mouse connectors (DKm-HD17P).

Keyboard and Pointing Device

Dimensions (drawer): 19" (W) x 1.75" (H) x 14.5" (D).
Depth (includes drawer handle): 15.875".
Weight: 21 lbs.

Physical Specs

Input: Autosensing 110/220V AC power supply.

Electrical and Power

Operating temperature:32 ~ 122°F
Storage temperature: -40 ~ 158°F
Humidity: 10% ~ 90% non-condensing.

Environmental and Safety

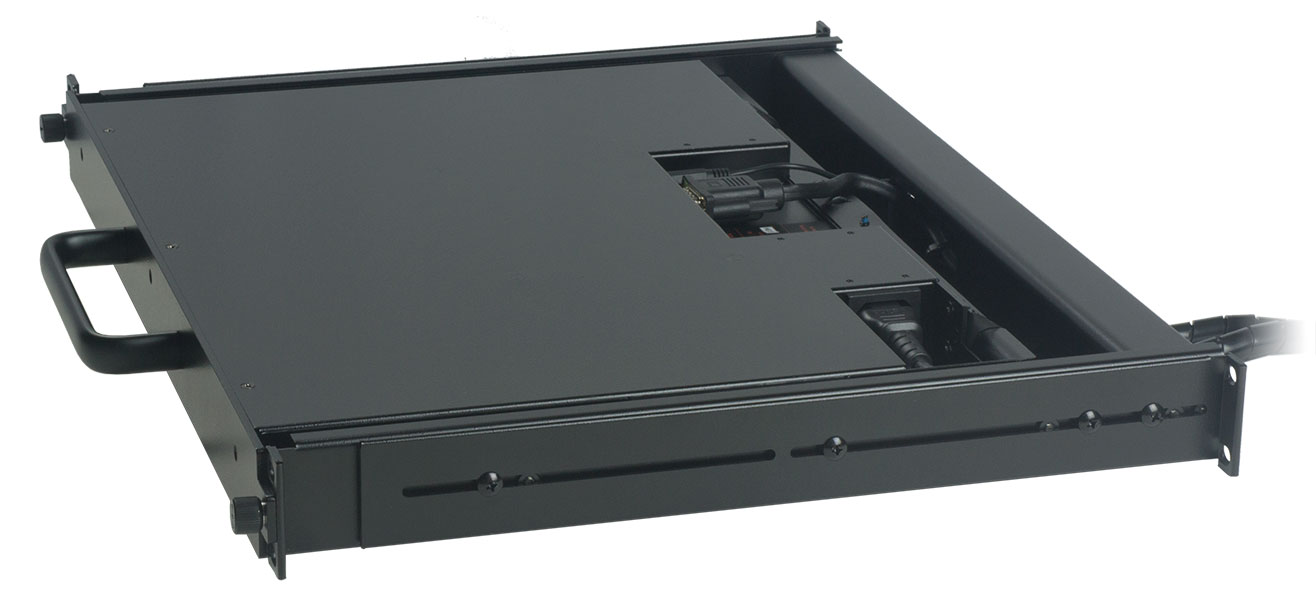

dkmhd17_gallery1

  • dkmhd17_gallery1
  • dkmhd17_gallery2

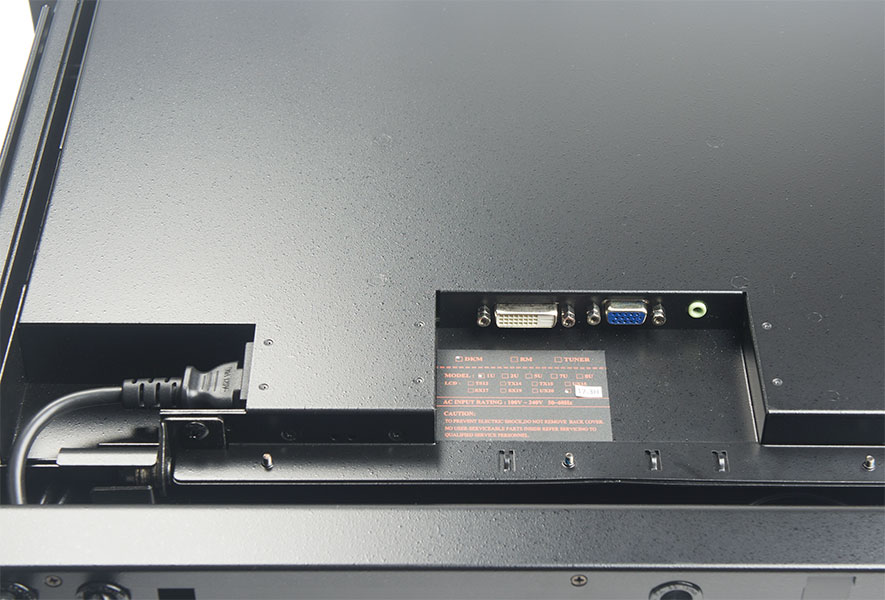

    DKM-HD17 video and audio ports
  • dkmhd17_gallery3

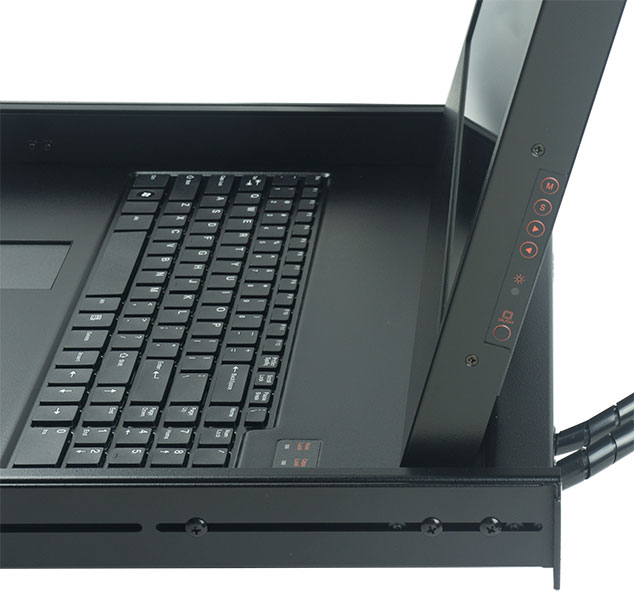

    DKM-HD17 LCD backlight on/off, on-screen-menu control buttons
  • dkmhd17_gallery4

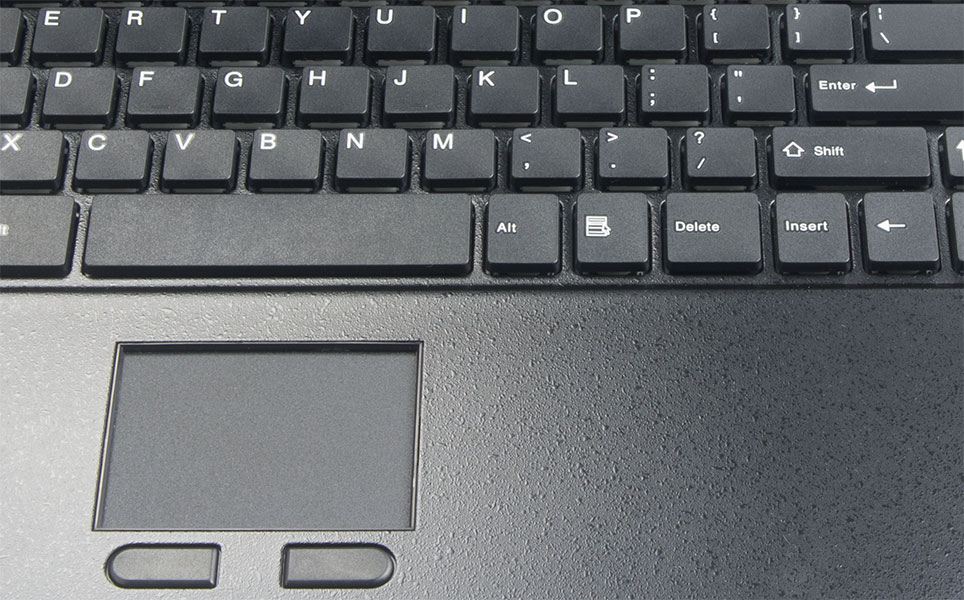

    DKM-HD17 keyboard and touchpad

Request Price Quotation

Use this form to request a quotation.

Select a Model
Choose Video Interface
Quantity

Please let us know how to contact you.



How To Buy

Contemporay MicroSystems accepts the following payment methods:

  • Purchase Orders—We accept academic, research institution, local, state and federal government agencies, and corporate purchase orders. Standard terms is net 30.
  • Credit Cards—We accept payment with credit cards. Please call (626)487-7034 to order. Visa, Mastercard, American Express are accepted. We do not accept international credit cards at this time. However, if you reside outside of the United States and Canada, you can email us your purchasing and shipping requirements. We'll prepare a proforma invoice as acknowledgement.
  • Resale discounts are available. Please send your request using the Request Price Quotation form. To qualify for reseller discount, a resale certificate/permit/ID is required.

Lead Time

This product is currently out of stock. It will be restocked by the end of August 2019.

Price (QTY One)

DKM-HD17U: $850.00
DKM-HD17P: $850.00
