DKM-1000 LCD monitor keyboard drawer with KVM switch, 4:3 aspect ratio, 1280x1024 resolution LCD, 8 and 16 port USB and PS/2 KVM switch.

1U Rack Console with KVM Switch

The DKM-1000 series is a rack console with an eight or sixteen port KVM switch. It integrates a LCD monitor, full size keyboard and touchpad pointing device in a rackmount slide out drawer that occupies only 1U rack space.

The LCD monitor has 1280 x 1024 resolution and comes in 17- or 19-inch sizes. Its low power consumption and EMI free technology makes it ideal for industrial applications. An on-screen display (OSD) menu let's you adjust the display for optimum viewing.

KVM switch rack console with LCD monitor keyboard drawer, DKM-1000 series

Rack console KVM switch, DKM-1708, DKM-1716, DKM-1908, DKM-1916 rackmount KVM consoles.

DKM-1000 Series KVM ports

The DKM-1000 series rack console comes with an eight or sixteen port KVM switch. It supports both USB and PS/2 input devices.

There is a cascade port that let you add additonal DKM-1000 units to control even more computers.

Pictured here are:

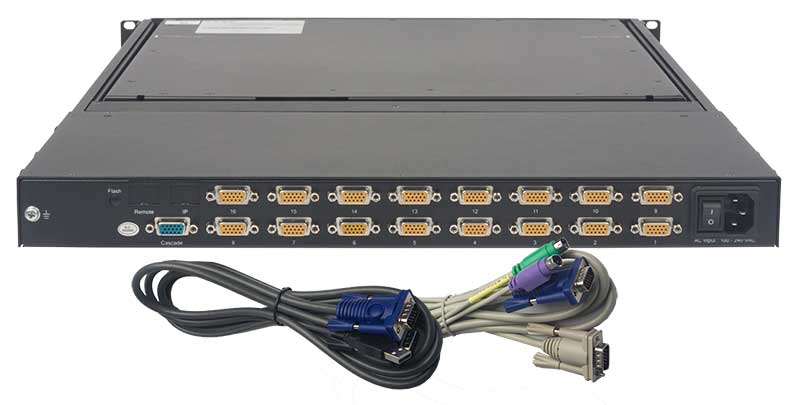

8- and 16-port KVM switch models and included six feet long USB and PS/2 type KVM cables.

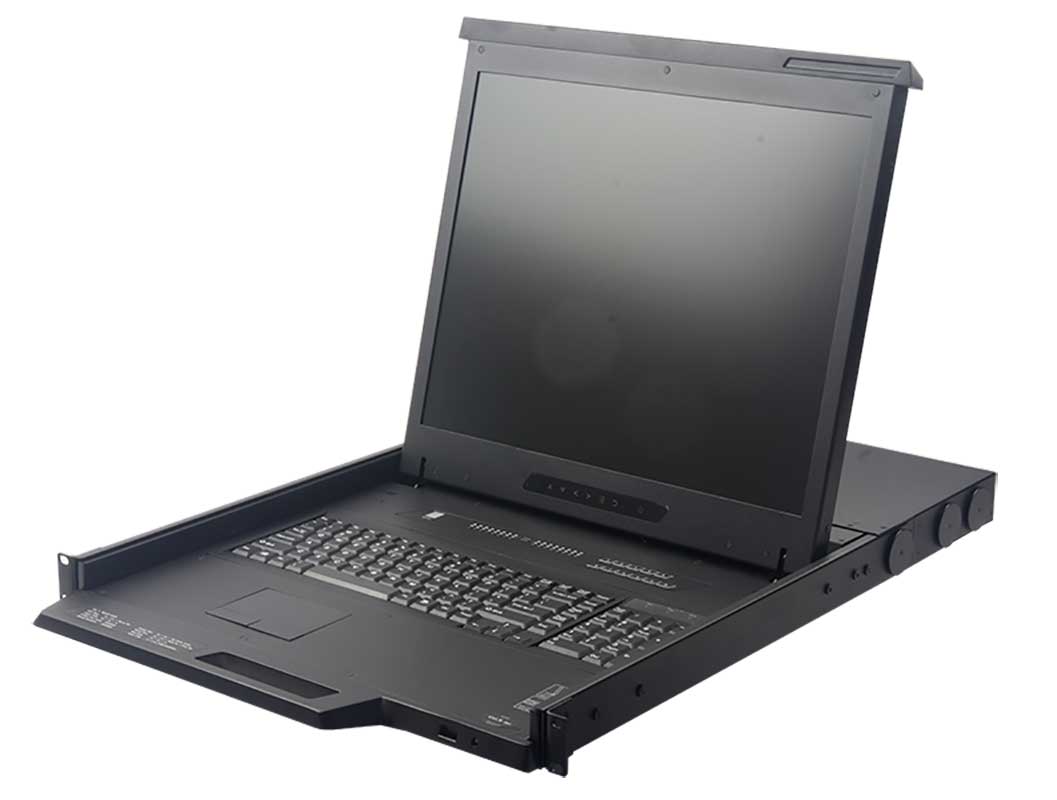

19-inch rack mountable, 1U slide-out rack mount drawer with LCD monitor, keyboard and touchpad mouse.
Rugged heavy-duty steel construction.

Construction

Display Size: 17- and 19-inch, 4:3 aspect ratio LCD (measured diagonally).
Resolution: 1280 x 1024.
Color Depth: 24-bit color depth (16 million colors).
Contrast Ratio: 1000:1.
Brightness (cd/m²): 250.
Response Time (ms): 5 ms.
View Angles (degrees): 85/85/80/80 (U/D/L/R) .
LCD Backlight Type: LED.
External Interface: VGA.
KVM video cable: 6-feet long KVM cable with D-Sub 15-pin VGA, USB or PS/2 connectors.

Flat Panel Display

Keyboard: Full size, 105-key, 12 function keys, 17-key numeric keypad.
Pointing Device: Two-button touchpad input device.
Keyboard/mouse Interface: PS/2 or USB.

Keyboard and Pointing Device

Dimensions (drawer): 19" (W) x 1.75" (H).
Depth (includes drawer handle):
17-inch model: 25.0".
19-inch model: 26.75".
Flange to flange depth:
17-inch models: 23.5" (min) to 31.8" (max) using adjustable rear bracket.
19-inch models: 25.2" (min) to 33.5" (max) using adjustable rear bracket.
Weight:
17-inch model: 35.8 lbs.
19-inch model: 41.0lbs.

Physical Specs

Input: Autosensing 110/220V AC power supply.

Electrical and Power

Operating temperature:32 ~ 122°F
Storage temperature: -40 ~ 158°F
Humidity: 10% ~ 90% non-condensing.

Environmental and Safety

Rack console KVM switch, DKM-1708, DKM-1716, DKM-1908, DKM-1916 rackmount KVM consoles

  • dkm-1708 rack KVM console switch with 8-port KVM switch
  • dkm-1908 rack KVM console switch with 8-port KVM switch

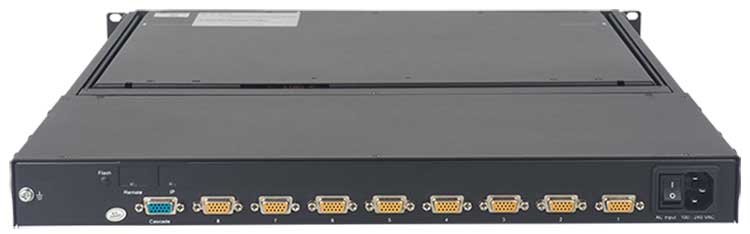

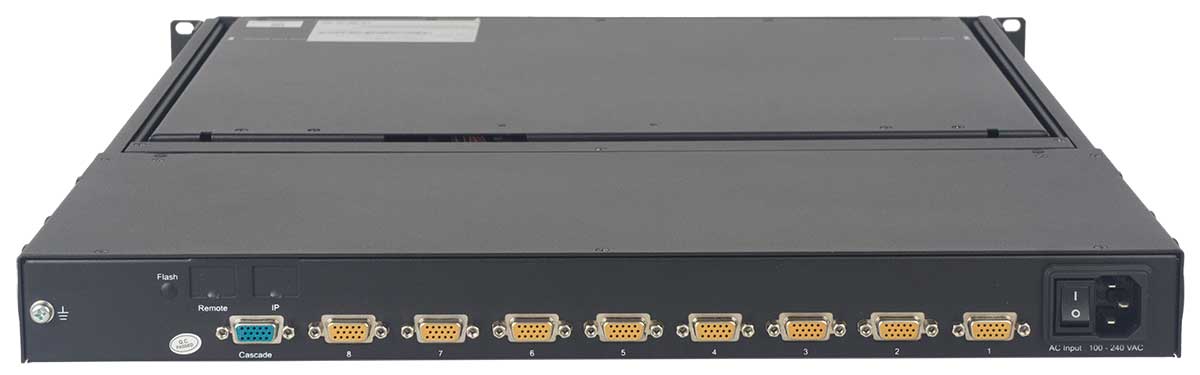

    8-port KVM switch
  • dkm-1716 rack KVM console switch with 16-port KVM switch

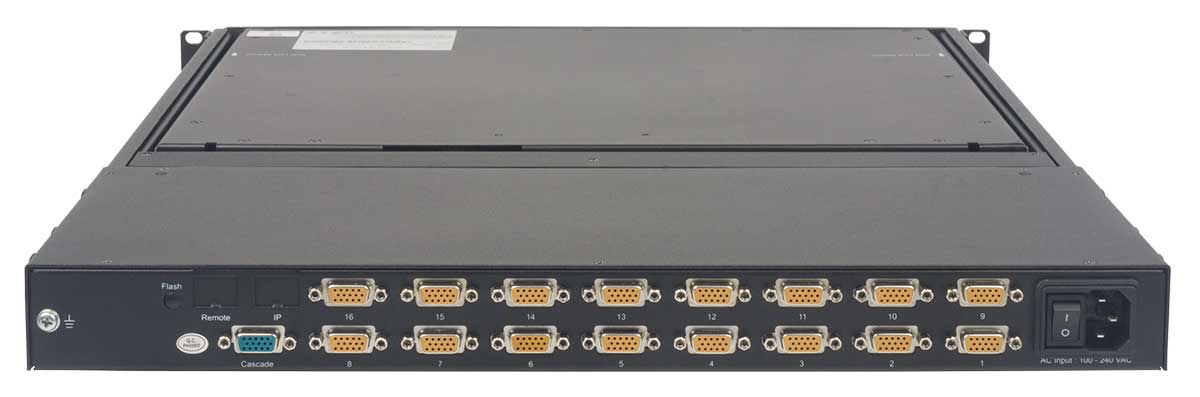

    16-port KVM switch
  • dkm-1916 rack KVM console switch with 16-port KVM switch

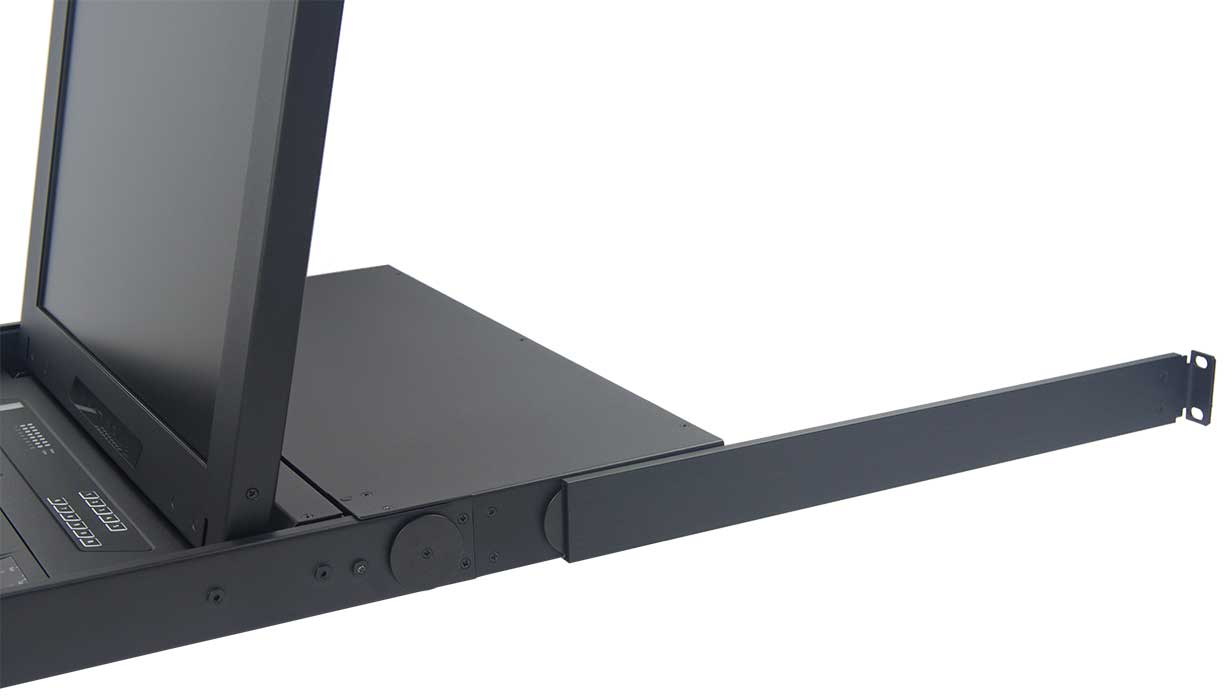

    Rear extension mounting bracket
  • dkm-1708 KVM console

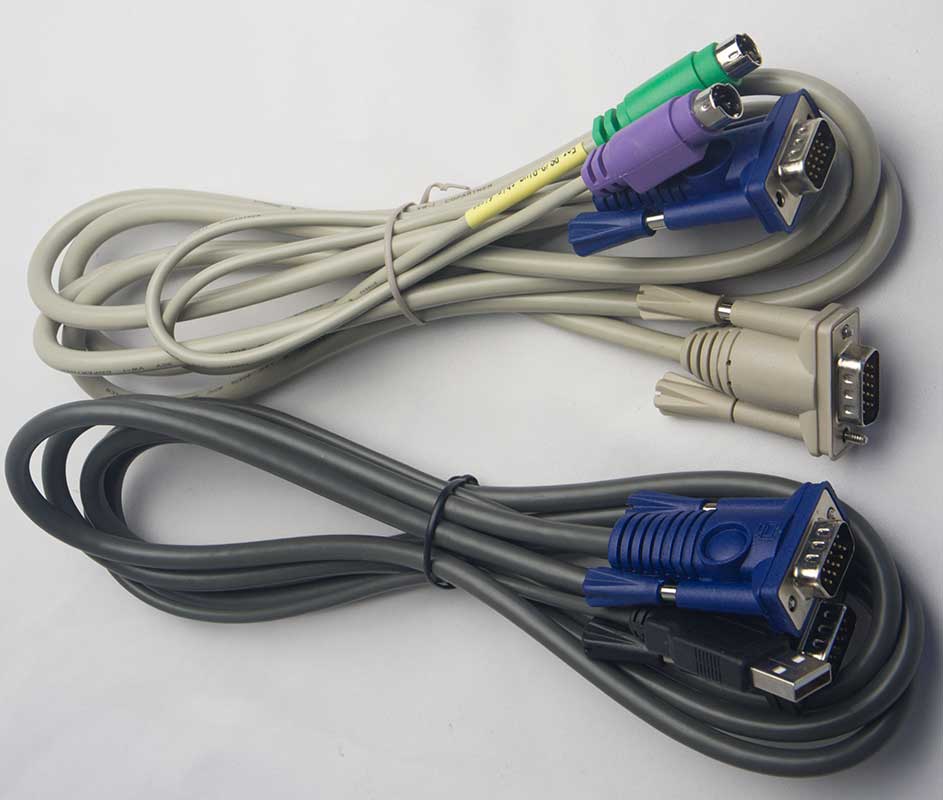

    PS/2 and USB KVM cables
  • dkm-1908 rack KVM console switch with 8-port KVM switch

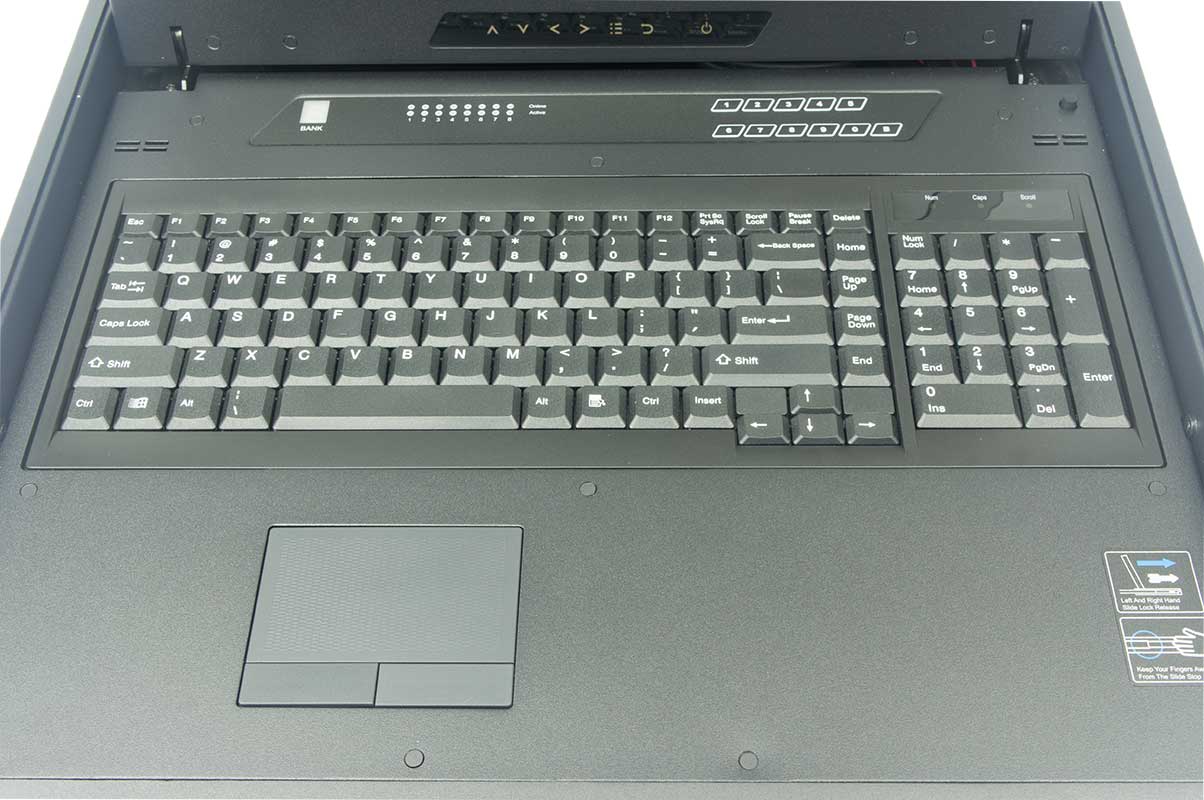

    Keyboard and touchpad

Download DKM-1000 datasheet ↓.
Download DKM-1000 mechanical drawings ↓.
