SMK-920S17, SMK-980S17, SMK-990S17 rack KVM console.

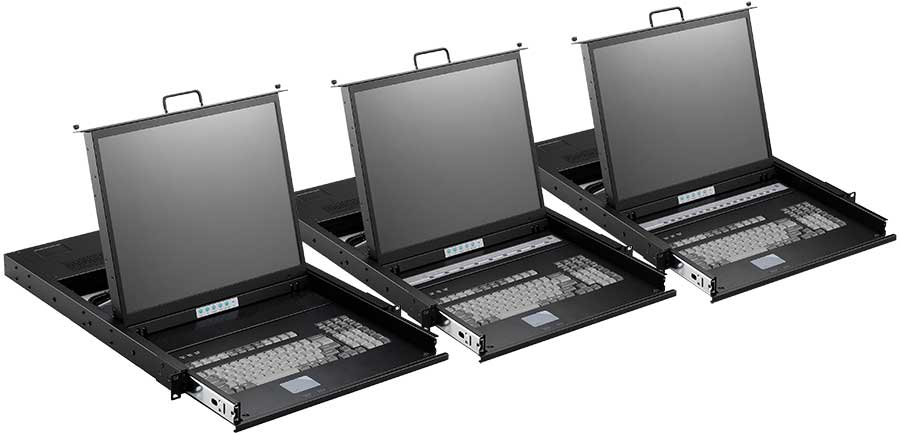

SMK-900 Series 1U Rack KVM Console

The SMK-900 series rack console fits in a standard 19 inch rack and occupies just 1U rack space. It features two LCD screen sizes—17" and 19", both of which provide 1280x1024 resolution.

The series comes with eight models differentiated by the number of KVM ports, keyboard/mouse interface, and LCD screen size. It's the most efficient and cost-effective way to control your server rack, from one to sixteen computers.



KVM ports for the SMK-920S17, SMK-980S17, SMK-990S17.

KVM Interface

The SMK-900 series' keyboard, video and mouse (KVM) interface consists of a single DB-15 connector for each KVM port. The DB-15 connector carries video and keyboard/mouse data from the computer to the KVM console.

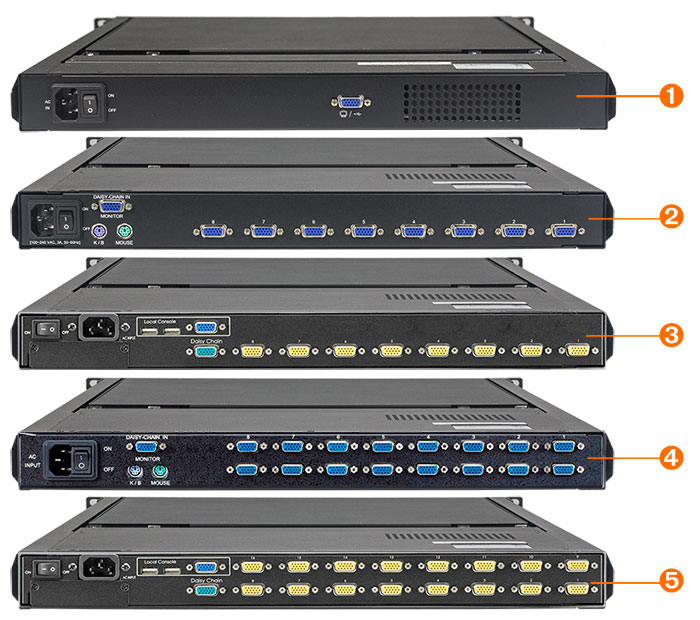

Within the series, you may choose models with USB or PS/2 only interface, or dual interface KVM switch that supports both PS2 and USB connectivity. This image shows the KVM ports of:
1. Single port USB or PS/2 interface (SMK-920S17P, SMK-920S17U, SMK-920S19P, SMK-920S19U).
3. 8-port dual interface (SMK-980S17D, SMK-980S19D).
5. 16-port dual interface (SMK-990S17D, SMK-990S19D).

Note: 2 and 4 are no longer available.

KVM cables are included with the product. With our dual interface models, you may choose to have all USB, all PS/2 of a mix of the two types of KVM cables.

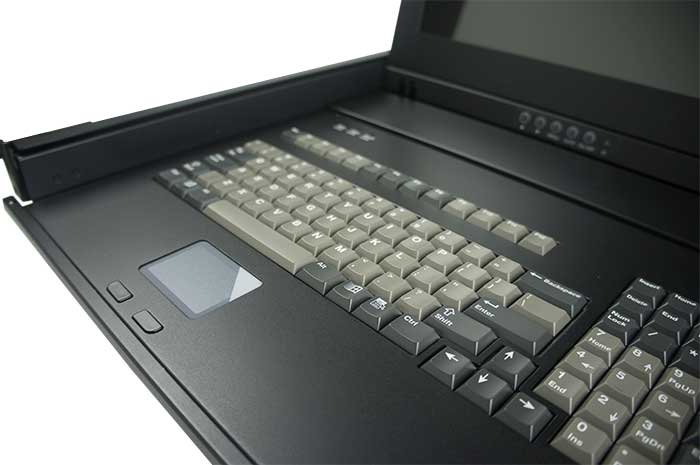

Full Size Cherry Keyboard in a Slide Out Drawer

The entire LCD monitor keyboard drawer is constructed of metal for ruggedness. The slide-out panel and keyboard tray is shipped with ball-bearing slide rails already attached to the unit. Rack mounting brackets can be extended from 19.75" up to 33.5" accomodating a wide range of equipment racks with different depth.


19-inch rack mount 1U slide-out drawer with LCD monitor, keyboard and touchpad mouse.
Rugged metal construction.

Construction

17" LCD

Panel: 17-inch, 5:4 aspect ratio LCD (measured diagonally), 1280 x 1024 pixels.
Color Depth: 16.2 million colors ( RGB 8-bit ).
Contrast Ratio: 500:1.
Brightness (cd/m²): 300.
View Angles (degrees): 170/160 (Horizontal/Vertical).
Backlight MTBF: 50,000 hours at 25±5°C.

19" LCD

Panel: 19-inch, 5:4 aspect ratio LCD (measured diagonally), 1280 x 1024 pixels.
Color Depth: 16.2 million colors ( RGB 8-bit ).
Contrast Ratio: 500:1.
Brightness (cd/m²): 300.
View Angles (degrees): 170/160 (Horizontal/Vertical).
Backlight MTBF: 50,000 hours at 25±5°C.

Flat Panel Display

Keyboard: Full size, 105-key, 12 function keys, 17-key numeric keypad.
Key Switch: Cherry keyswitches.
Pointing Device: Two-button touchpad input device.
Keyboard/mouse Interface: PS/2 or USB interface only. Or dual interface support that provides both PS2 and USB connectivity.

Keyboard and Pointing Device

KVM external interface: D-Sub 15-pin connector for each KVM port.
SMK-920S17P: One DB-15 connector.
SMK-920S17U: One DB-15 connector.
SMK-920S19P: One DB-15 connector.
SMK-920S19U: One DB-15 connector.
SMK-980S17D: Eight DB-15 connectors.
SMK-980S19D: Eight DB-15 connectors.
SMK-990S17D: Sixteen DB-15 connectors.
SMK-990S19D: Sixteen DB-15 connectors.
USB model KVM cable: 6-feet KVM cable with D-Sub 15-pin interface to the KVM; VGA and USB connectors interfacing to computer.
PS/2 model KVM cable: 6-feet KVM cable with D-Sub 15-pin interface to the KVM, VGA and PS/2 connectors interfacing to computer.

External Connectors

SMK-920S17P, SMK-920S17U dimensions/weight/minimum flange to flange distance: 19" (W) x 1.75" (H) x 19.69" (D) / 23 lb. / 21.25".
SMK-920S19P, SMK-920S19U dimensions/weight/minimum flange to flange distance: 19" (W) x 1.75" (H) x 19.69" (D) / 24 lb./ 21.25".
SMK-980S17D dimensions/weight/minimum flange to flange distance: 19" (W) x 1.75" (H) x 23.62" (D) /32 lb. / 24.87".
SMK-980S19D dimensions/weight/minimum flange to flange distance: 19" (W) x 1.75" (H) x 23.62" (D) /33 lb. / 24.87".
SMK-990S17D dimensions/weight/minimum flange to flange distance: 19" (W) x 1.75" (H) x 23.62" (D) / 37 lb. / 24.87".
SMK-990S19D dimensions/weight/minimum flange to flange distance: 19" (W) x 1.75" (H) x 23.62" (D) / 38 lb. /24.87".

Physical Specs

Input: Autosensing 60W, 100-240VAC, 50/60Hz AC power supply.

Electrical and Power

Operating temperature: 32 ~ 122°F.

Environmental and Safety

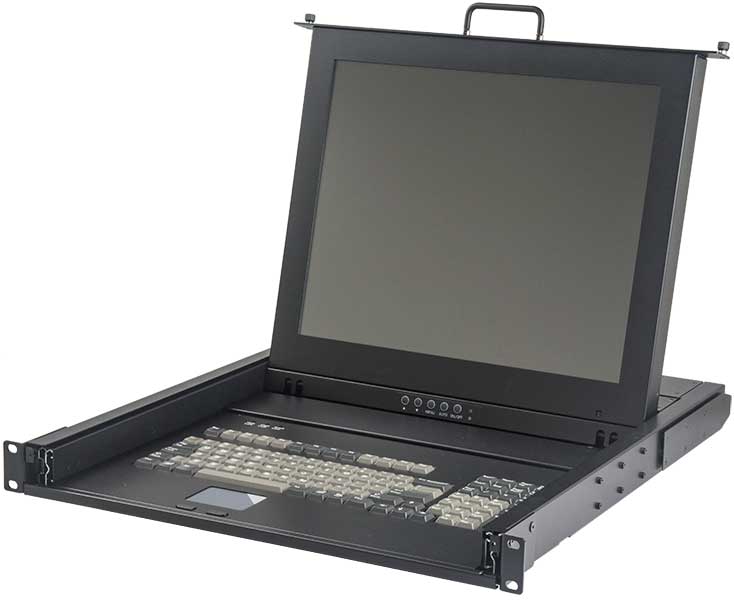

smk920_gallery_view1

  • smk920_gallery_view1
  • smk980_gallery_view1

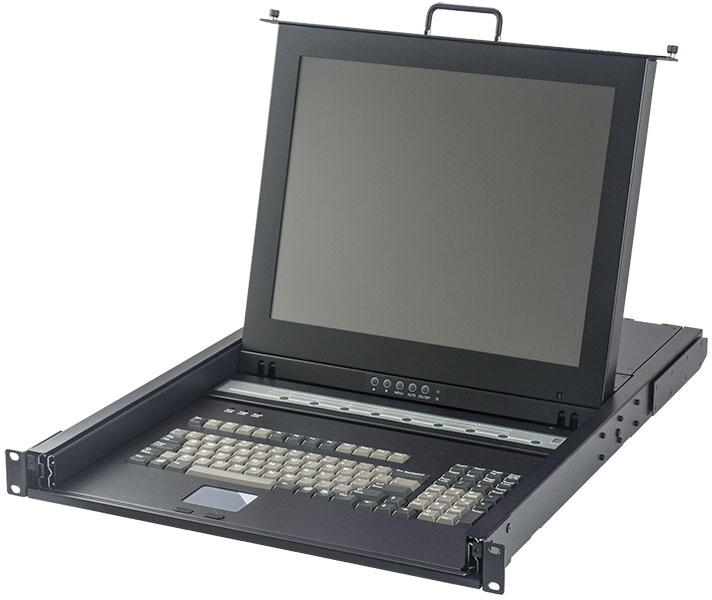

    SMK-980S17
  • smk920_gallery_view2

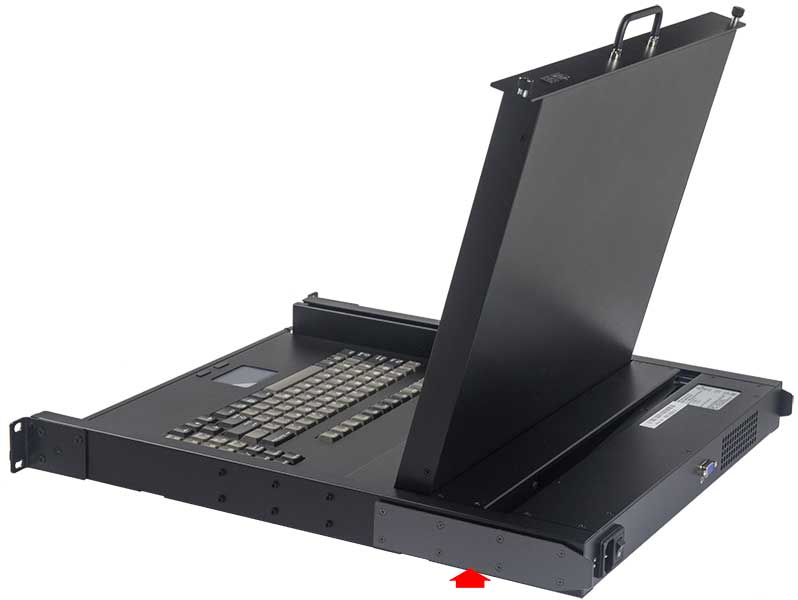

    SMK-920S17 side view showing "fins" attached to the rack mount rail.
  • smk900_gallery_rail

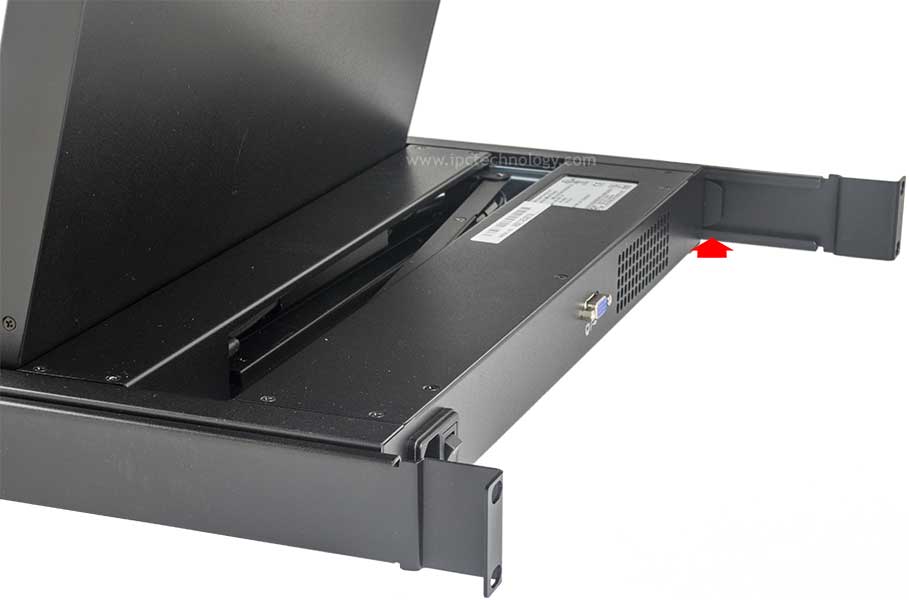

    SMK-920S17 mounting rails inserted into rear mounting flanges by sliding the "fins" into them.
  • smk900_gallery_keyboard

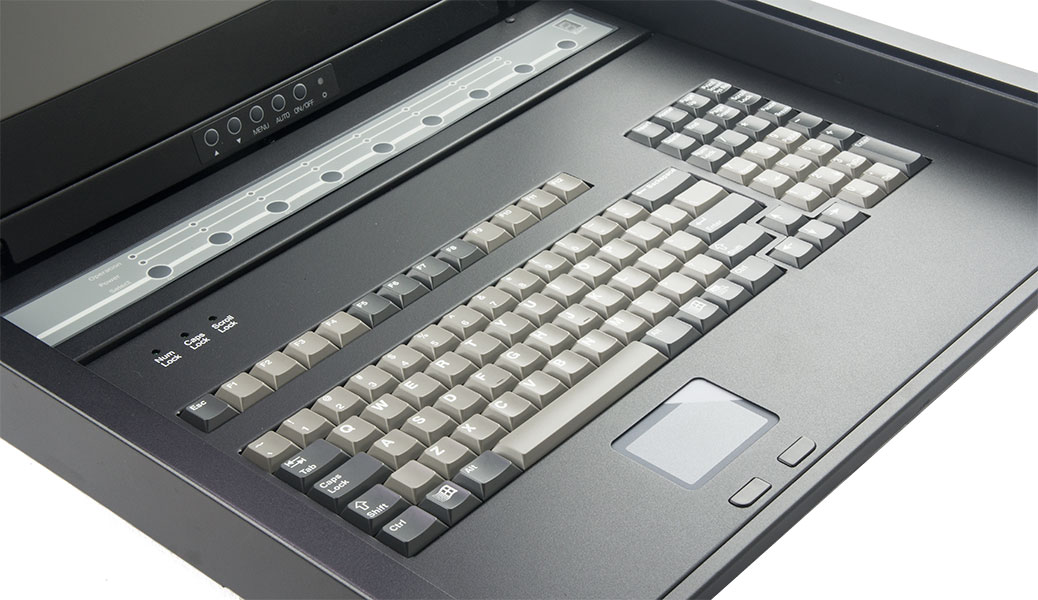

    SMK-980 Cherry keyboard and 8-port KVM switch showing port selector buttons and status LEDs.
  • smk900_gallery_lcdswitch
    LCD on/off switch shuts off LCD when it's folded down.

Download SMK-900 series user guide ↓.
Download SMK-900 series datasheet ↓.
Download SMK-900 series mechanical drawings ↓.
SMK-920 3D ↓.

Downloads

Request Price Quotation

Please use this form to request a quotation for the SMK-900 series.

Select a Model

Both 17" and 19" LCDs have 1280x1024 resolution.
PS/2 KVM cable has a VGA and two PS/2 connectors.
USB KVM cable has a VGA and USB connector.
If you select a dual-interface model please use the message field to tell us the type of KVM cables you'll need. They can be all USB, all PS/2 or a mix of the two types.

Quantity

Please let us know how to contact you.



How To Buy

Contemporay MicroSystems accepts the following payment methods:

  • Purchase Orders—We accept academic, research institution, local, state and federal government agencies, and corporate purchase orders. Standard terms is net 30.
  • Credit Cards—We accept payment with credit cards. Please call (626)487-7034 to order. Visa, Mastercard, American Express are accepted. We do not accept international credit cards at this time. However, if you reside outside of the United States and Canada, you can email us your purchasing and shipping requirements. We'll prepare a proforma invoice as acknowledgement.
  • Resale discounts are available. Please send your request using the Request Price Quotation form. To qualify for reseller discount, a resale certificate/permit/ID is required.

Lead Time

About 5 days after we receive your order.

Price (QTY One)

SMK-920S17P: $1250.00
SMK-920S17U: $1250.00
SMK-920S19P: $1295.00
SMK-920S19U: $1295.00
SMK-980S17D: $1500.00
SMK-980S19D: $1575.00
SMK-990S17D: $1575.00
SMK-990S19D: $1625.00
