USB keyboard mouse rackmount LCD console with flip-up LCD monitor

The SMK-820 series server LCD console lets you monitor rackmount server using a single monitor keyboard mouse. SMK-820 LCD console features a 17 inch, 1280 x 768 pixels resolution flat panel LCD monitor, USB keyboard mouse. USB keyboard and mouse are hot-pluggable, easily recognized and configured by the operating system, and the PC usually provides 4 or more USB ports for peripheral devices.

Portable Computer

Touch Panel PC

Rack Console

Rack Mount LCD

Support

What's New

SMK-920 Series Rack KVM Console with 17" or 19" LCD Monitor

Supports PS/2 or USB Keyboard/Mouse

dual interface 17 inch LCD rack console supports USB and PS/2 keyboard and mouse

1U Rack mount KVM console supports PS/2 or USB input devices.

Comes with 6' KVM cable.

Ordering Information:
SMK-920S17 (17" LCD, PS/2)
SMK-920S17U (17" LCD, USB)
SMK-920S19 (19" LCD, PS/2)
SMk-920S19U (19" LCD, USB)

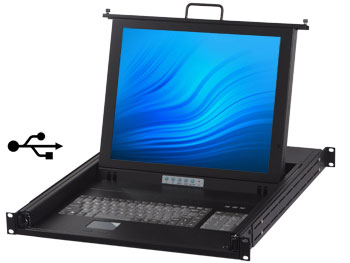

Space-saving Monitor Keyboard Rack Console

The SMK-920 series rack mount console features a flip-up LCD monitor, slide-out keyboard drawer in a space-saving design. It fits in a standard, 19-inch rack configuration taking up just 1 rack unit space. The entire LCD monitor keyboard drawer is constructed of metal for ruggedness. The slide-out panel and keyboard drawer is shipped with ball-bearing slide rails already mounted on the unit. Rack mounting brackets can be extended up to 35.4" accomodating a wide range of equipment racks with different depth. And its low power consumption leaves more power for servers and storage.

With its clamshell design, the keyboard tray slides out for LCD and keyboard access and remain hidden when not in use. The LCD panel flips up for use and folds down for storage.

17- or 19-inch TFT LCD with Keyboard/Mouse Interface Supporting USB or PS/2 Keyboard and Mouse

The SMK-920 series comes with a 17 inch o 19 inch SXGA (1280 x 1024 pixels) flat panel LCD monitor. A set of on-screen-display (OSD) control buttons located on the front bezel provides adjustments for the display. There is also a switch to turn off the backlight to prolong the service life of the LCD monitor. The SMK-920 series includes four models. Each ships with a KVM cable that supports analog video and PS/2 or USB keyboard and mouse.

Lead Time

  • This item usually ships in approximately 2~3 days.
