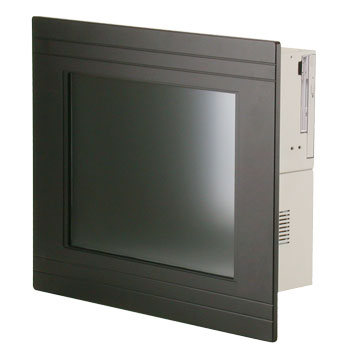

PPC-110 series Panel PC with touch screen LCD

The PPC-110 is a IP-65 rated and RoHS compliant industrial panel PC with touch screen LCD monitor. Designed to serve as a friendly human-machine interface (HMI)for easy integration into any space-constricted embedded applications, the PPC-110 industrial panel PC provides full PC functionality. Multi-I/O and expansion capability lets the PPC-110 panel PC interface with other applications. The PPC-100 panel PC supports touch screen LCD for user interface. It accommodates a wide range of PC peripherals for a host of applications such as operator panel PC, information panel computer terminals, point-of-sales and point-of-service panel mount PC.

Portable Computer

Touch Panel PC

Rack Console

Rack Mount LCD

Support

What's New

Industrial Touch Screen Panel PC

PPC-120 series RoHS Panel Computer with Touch Screen LCD Monitor

panel PC PPC-100

The PPC-120 panel PC is designed to offer flexible system configuration with Intel 945GME chipset-based system board.

Standard configuration includes: Intel Core 2 Duo T5600 processor @ 1.83 GHz, 1GB of RAM, 160GB SATA hard drive, resistive touch screen.

The aluminum bezel is standard. It's panel mountable, and VESA mounting patterns lets you mount it on walls, swing-arms, or on a wall. Panel-mounting hardware is included.



The PPC-120 is a series of industrial panel PCs designed to serve as a friendly human-machine interface for easy integration into any space-constricted embedded applications. It provides full PC functionality within its compact chassis. Coupled with its multi-I/O and expansion capability, the PPC-120 panel PC stands ready to accommodate a wide range of PC peripherals for a host of applications such as operator interface, information terminals and point-of-service PCs.

The PPC-120 panel PC supports Intel Core 2 Duo, Core Duo, and Celeron M processors. Its LCD touch screen offers resistive or surface acoustic wave options, with screen sizes from 12" up to 19". System integrated features include dual LAN ports, USB 2.0, digital I/O, VGA, RS232 serial and EPP/ECP parallel interfaces. Its storage devices includes a slim-line optical disc drive, slim-line floppy drive, and 3.5" SATA hard drive. And if additional functions are required, it supports two PCI add-in cards.

The PPC-120 panel PC is designed for universal panel mounting to fit different installation requirements. Each screen size also comes with three bezel options. Wall-mount, swing-arm-mount, pole-mount are also supported with VESA mounting holes on the back. Special industrial features not commonly seen in commercial systems such as watchdog timer and water/dust proof front panel makes it a best choice for the operation in hostile environments.

Integration & Application

Lead Time

  • PPC-120 with resistive touch screen ships within 3 weeks, slightly longer for SAW touch screen.
