USB KVM with USB enabled keyboard mouse. Rackmount server LCD console with USB KVM

The SMK-820 series server LCD console lets you monitor rackmount server using a single monitor keyboard mouse. SMK-820 LCD console features a 17 inch, 1280 x 768 pixels resolution flat panel LCD monitor, USB keyboard mouse. USB enabled keyboard and mouse are hot-pluggable, easily recognized and configured by the operating system, and the PC usually provides 4 or more USB ports for peripheral devices.

Portable Computer

Touch Panel PC

Rack Console

Rack Mount LCD

Support

What's New

SMK-920 Series Rack KVM Console with 17" or 19" LCD Monitor

Supports PS/2 or USB Keyboard/Mouse

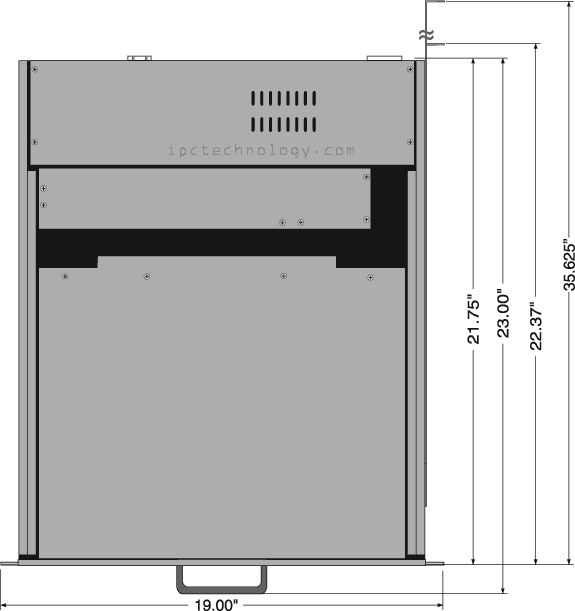

SMK-920 series dimensional drawing - top view

Dual interface 17 inch LCD console supports USB and PS/2 keyboard and mouse. Product dimensional drawings.

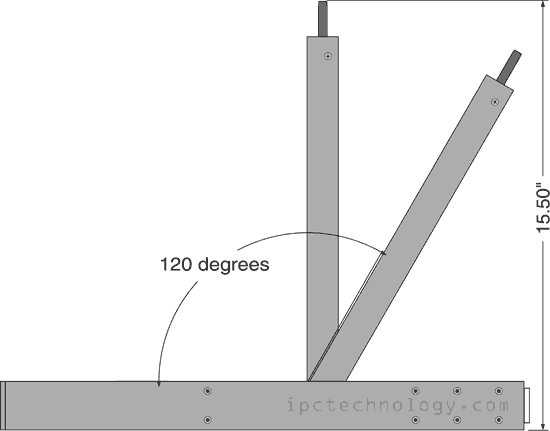

SMK-920 series dimensional drawing - side view

USB keyboard mouse server LCD console side dimensional drawing

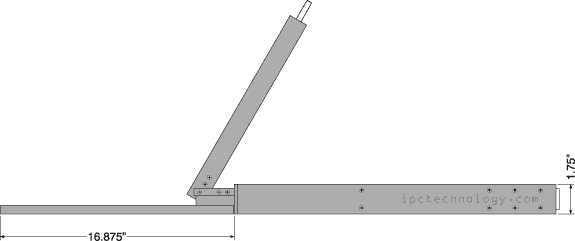

SMK-920 series dimensional drawing - side view with keyboard tray fully extended

USB keyboard mouse server LCD console pull-out keyboard dimensional drawing

More Product Information

How To Buy

Lead Time

  • This item usually ships in approximately 2~3 days.
