Wide Screen LCD Monitor Keyboard Drawer Rack Console

SMK-420WX17 with 16:10 WXGA 17-inch Flip-up LCD and Slide-out Keyboard Tray

widescreen LCD monitor keyboard rack console SMK-420 series

In the PC world, a wide XGA (WXGA) LCD refers to several modes of wide aspect ratios one of which supports 1280x768 pixels resolution. This gives you an approximately 16:10 aspect ratio display. Comparing WXGA to XGA's 1024x768 resolution, you get 25% more display area.

Widescreen Monitor Keyboard Rack Console

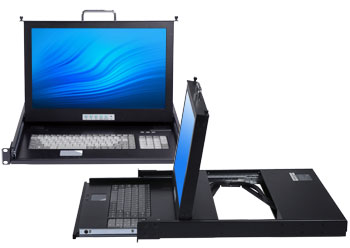

The SMK-420WX17 is a monitor keyboard rack console featuring a combination of a flip-up LCD monitor, keyboard, mouse in a space-saving clamshell design. The SMK-420WX17 fits in a standard, 19-inch rack configuration taking up just 1 rack unit space. The LCD monitor flips up for use and folds down for storage.

Widescreen TFT LCD Provides More Display Area

The SMK-420WX17 comes with a high brightness, high contrast ratio, 17 inch widescreen flat panel LCD. Its 1280 x 768 pixels resolution provides approximately a 16:10 aspect ratio display. And with 600:1 contrast ratio, a level approaching that of CRT monitors, you can judge your work more accurately because subtle shades of color or gray in your graphic images become visible. The widesrceen LCD monitor provides more screen area for your applications. The WXGA display provides 25% more pixels than XGA resolution. The increased screen resolution has a direct impact on productivity, because now you can show more of your data, images, spreadsheet with less scrolling.

Short Depth Chassis Also Accomodates Wide Range of Rack Depth

The entire LCD monitor keyboard drawer is constructed of metal for ruggedness. The slide-out panel and keyboard tray is shipped with ball-bearing slide rails already attached to the unit. Rack mounting brackets can be extended from 20.0" up to 35.4" accomodating a wide range of equipment racks with different depth. Its low power consumption leaves more power for servers and storage.

Lead Time

  • This item usually ships in approximately 2~3 days.
