USB keyboard mouse rackmount LCD console with flip-up LCD monitor

The SMK-820 series server LCD console lets you monitor rackmount server using a single monitor keyboard mouse. SMK-820 LCD console features a 17 inch, 1280 x 768 pixels resolution flat panel LCD monitor, USB keyboard mouse. USB keyboard and mouse are hot-pluggable, easily recognized and configured by the operating system, and the PC usually provides 4 or more USB ports for peripheral devices.

Portable Computer

Touch Panel PC

Rack Console

Rack Mount LCD

Support

What's New

Server Console for USB-enabled Computers

SMK-820S17 with 17-inch LCD, USB Keyboard Mouse

USB keyboard mouse server LCD console

Advantages of USB external devices:

Hot-pluggable: keyboard and mouse devices can be added while the PC is running.

Ease of use: I/O device attachment is recognized by the PC and appropriate device drivers, and configuration is done automatically.

Single connector type: all devices plug into the same socket type.

High performance: 12 Mbps is much faster than existing serial and parallel ports.

Up to 127 devices: there is no practical limit to I/O device expandability.

Space-saving Monitor Keyboard Rack Console

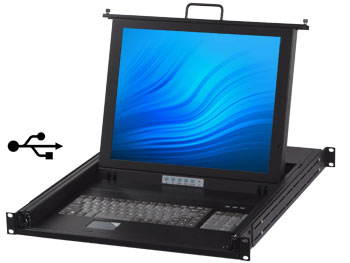

The SMK-820S17 is a monitor keyboard rack console featuring a combination of a flip-up LCD monitor, keyboard, mouse in a space-saving clamshell design. The SMK-820S17 fits in a standard, 19-inch rack configuration taking up just 1 rack unit space. The entire LCD monitor keyboard drawer is constructed of metal for ruggedness. The slide-out panel and keyboard tray is shipped with ball-bearing slide rails already mounted on the unit. Rack mounting brackets can be extended from 20.0" up to 35.4" accomodating a wide range of equipment racks with different depth. And its low power consumption leaves more power for servers and storage.

With its clamshell design, the keyboard tray slides out for LCD and keyboard access and remain hidden when not in use. The LCD panel flips up for use and folds down for storage.

17-inch TFT LCD with USB Keyboard and Mouse Interface

The SMK-820S17 comes with a 17 inch SXGA (1280 x 1024 pixels) flat panel LCD monitor. A set of on-screen-display (OSD) control buttons located on the front bezel provides adjustments for the display. There is also a switch to turn off the backlight to prolong the service life of the LCD monitor.

Using USB-based keyboard and touchpad mouse, the unit supports USB's many advantages including hot-pluggable, ease of use and high performance.

Lead Time

  • This item usually ships in approximately 2~3 days.
