DKM-SX19M monitor keyboard rack console is a 1U LCD monitor keyboard drawer with a combination of a flip-up LCD monitor, pull-out keyboard drawer and optical mouse in a space-saving clamshell design. The monitor keyboard mouse is mounted on ball-bearing slide rails letting you effortlessly pull out the monitor keyboard drawer to access the flip-up LCD and keyboard drawer for operation. The LCD monitor flips up for use and folds down for storage. There is even a lock on the pull-out keyboard drawer to prevent unauthorized access.

Each monitor keyboard mouse drawer includes an external power supply. The monitor keyboard is well suited for use in industrial conditions such as data centers or the factory floor by virtue of its rugged metal enclosure and its key lock security to prevent unauthorized access.

Portable Computer

Touch Panel PC

Rack Console

Rack Mount LCD

Support

What's New

LCD Monitor Keyboard Drawer with Fold-down 19" LCD

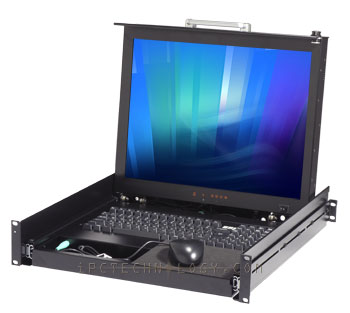

DKM-SX19M Pull-out LCD Keyboard Drawer with Optical Mouse

 19 inch industrial LCD monitor keyboard pull-out drawer with mouse DKM-SX19M
high contrast ratio LCDhigh brightness LCD

The DKM-SX19M integrated LCD monitor keyboard is a rack-mountable pull-out drawer that occupies only 2 rack unit space. Using a fold-down flat panel monitor design, the DKM-SX19M LCD monitor keyboard drawer offers a low profile enclosure to store three frequently used peripheral devices of a typical data center or server management environment—monitor, keyboard and mouse.

The pull-out keyboard drawer is mounted on slide rails so you can easily pull the unit out of your equipment rack to access the LCD and keyboard. The LCD monitor flips up for use and folds down for storage. The unit's power supply is an externally attached AC/DC adapter on the back of the unit. The adapter can be easily detached in the event that it needs to be replaced.

The DKM-SX19M LCD monitor keyboard drawer has a large 19" SXGA high resolution screen so more information can be displayed on-screen. With its wide viewing angles (170 degrees both vertical and horizontal), 700:1 contrast ratio (a level approaching that of CRT monitors), you'll be able to distinguish the subtle shades of color or gray in your graphics images. Lower power consumption and EMI free technology makes it ideal for industrial applications. An on-screen display (OSD) menu using four front-panel-mounted control buttons let's you adjust the display for optimum viewing.

A mouse offers much better point-and-click precision than a touchpad pointing device. The keyboard drawer has a mouse pad for mouse movement and a storage compartment for the mouse.

Instead of using a notebook style touchpad, the DKM-SX19M LCD monitor keyboard drawer comes with an optical mouse. A convenient storage compartment and a mouse pad are integrated in the keyboard drawer. Now you can take advantage of a high resolution mouse for high precision point and click navigation.

The entire LCD monitor keyboard drawer is constructed of metal for ruggedness. At just over 17" in depth, you can fit the unit in short-depth cabinets. With the ball-bearing slide rails that can be extended from 19.4" up to 35.3", it will also accomodate the deepest equipment racks.

Lead Time

  • Please call for lead time on this item.
