Monitor keyboard, monitor keyboard mouse, rack console in a pull-out rackmount LCD monitor keyboard mouse drawer design

DKM-SX19M monitor keyboard rack console is a 1U LCD monitor keyboard drawer with a combination of a flip-up LCD monitor, pull-out keyboard drawer and optical mouse in a space-saving clamshell design. The monitor keyboard mouse is mounted on ball-bearing slide rails letting you effortlessly pull out the monitor keyboard drawer to access the flip-up LCD and keyboard drawer for operation. The LCD monitor flips up for use and folds down for storage. There is even a lock on the pull-out keyboard drawer to prevent unauthorized access.

Each monitor keyboard mouse drawer includes an external power supply. The monitor keyboard is well suited for use in industrial conditions such as data centers or the factory floor by virtue of its rugged metal enclosure and its key lock security to prevent unauthorized access.

Portable Computer

Touch Panel PC

Rack Console

Rack Mount LCD

Support

What's New

LCD Monitor Keyboard Drawer with Fold-down 19" LCD

DKM-SX19M Pull-out LCD Keyboard Drawer with Optical Mouse

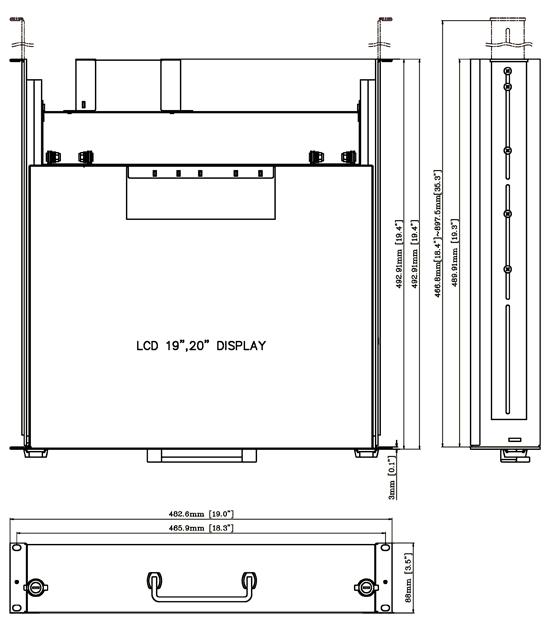

DKM m-series LCD-keyboard-mouse rackmount drawer top and front view dimensional drawings

high resolution industrial LCD monitor keyboard drawer

Flat panel monitor console includes fold-down LCD monitor and pull-out keyboard drawer in a space-saving rackmountable design

DKM-SX19M 2U LCD monitor keyboard drawer provide a combination of a fold-down LCD monitor, keyboard and mouse in a space-saving clamshell design. Each unit is constructed of heavy duty metal for ruggedness. Ball-bearing slide rails let you effortlessly pull out the keyboard drawer to access the LCD and keyboard for operation. The LCD monitor flips up for use and folds down for storage.

The LCD monitor keyboard drawer includes an optical mouse for high precision point-and-click navigation. A mouse pad for mouse movement is integrated in the keyboard tray. There is a convient mouse pocket to store the mouse.

Perfect as display terminal or server management console, the DKM-SX19M LCD monitor keyboard drawer is well suited for use in industrial conditions by virtue of its rugged metal enclosure and its key lock security to prevent unauthorized access in a data center or on the factory floor.

Lead Time

  • Please call for lead time on this item.
