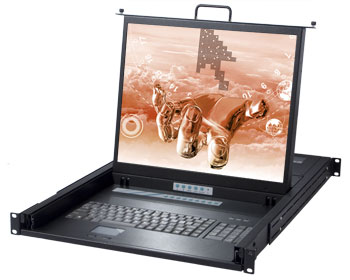

Keyboard Monitor Switch with 19" LCD Monitor
SMK-580S19 Rack Console, 8-Port Keyboard Monitor Mouse Switch
- Keyboard monitor switch rack console.
- Integrated auto-scan, hot-pluggable 8-port keyboard monitor mouse switch.
- 200 MHz bandwidth, high quality video switch for up to SXGA (1280x1024) resolution.
- Fold-down flat panel LCD.
- 19 " SXGA resolution @ 1280 x 1024 optimum resolution.
- Easy access control buttons for keyboard monitor switch and LCD on-screen-display menu.
- Ball-bearing slideout keyboard tray with 25.5" to 38.75" extension mounting brackets.
- One rack unit height.
- Complete with 8 sets of KVM cables.
The SMK-580S19 keyboard monitor mouse switch combines a flat panel LCD monitor, keyboard and touchpad mouse in a single functional unit. Its clamshell design uses a flip-up TFT monitor to save valuable rack space. And since in a typical data center, server racks consist of several different computer systems, it is important that they can be administered from a central console. This is where the keyboard monitor switch can prove invaluable, since it enables the keyboard, monitor and mouse to be switched between the various individual computers.
The keyboard monitor mouse switch supports operating systems such as DOS, Win3.x, Win95/98/2000/ME/XP, WinNT, Netware, SCO Unix, HP Unix, Linux.
Pointing devices compatible with Microsoft Mouse are supported.
Works with COTS keyboard, VGA, mouse cables.
The SMK-580S19 8-port keyboard monitor switch is a convenient solution for controlling multiple computers. This single unit combines a 8-port KVM switch, keyboard, 19" LCD monitor and touchpad — all in a mere 1U of rack space. The keyboard monitor mouse switch lets you control up to 120 PCs or servers by daisy-chaining additional KVM switches. The SMK-580S19 keyboard monitor switch supports hot plugging of systems and features auto-scanning of connected systems and systems on daisy chained installations. It has an 8-character password security feature that ensures only authorized users can view and control connected PCs or servers. The convenient and easy-to-operate KVM switch controls all ports using hotkeys or the mouse-driven OSD (On-Screen Display) menus.
The keyboard monitor mouse is mounted on slide rails so you can easily pull out the unit from your equipment rack. The keyboard tray slides out for LCD and keyboard access and remain hidden when not in use. A large 19 inch SXGA high resolution LCD monitor so more information can be displayed on-screen. And with its 1000:1 contrast ratio, you'll be able to distinguish the subtle shades of color or gray in your graphics images. The LCD's lower power consumption and EMI free technology makes it ideal for industrial applications. An on-screen display (OSD) menu using four control buttons let's you adjust the display for optimum viewing.
The entire LCD monitor keyboard drawer is constructed of metal for ruggedness. The slide-out keyboard tray is shipped with ball-bearing slide rails already attached to the unit. Rack mounting brackets can be extended from up to 38.75" accomodating a wide range of equipment racks with different depth.
