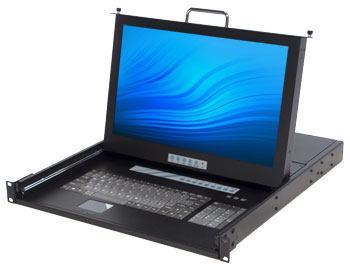

SMK-480WX17 kvm console with widescreen LCD monitor and 8 port KVM switch

KVM console with built-in 8 port KVM switch lets you monitor multiple rack mount servers using a single monitor keyboard mouse. The KVM console features a 17 inch widescreen LCD monitor, keyboard and touchpad mouse. The widescreen LCD flips up for use. The entire KVM console and KVM switch is mounted on slide rails for easy access. The 8-port KVM switch supports hot-plugging and uses an On-Screen Display (OSD) interface and pushbuttons on the keyboard for accessing each attached computer. Cascading KVM switch units allows you to modify your Server Console Switch system, as your network system needs change.

Portable Computer

Touch Panel PC

Rack Console

Rack Mount LCD

Support

What's New

This item is no longer available.

You may want to consider the 16-port SMK-490WX17.

SMK-480WX17 KVM console with 8-port KVM switch, widescreen 17 inch LCD monitor

The KVM switch supports operating systems such as DOS, Win3.x, Win95/98/2000/ME/XP, WinNT, Netware, SCO Unix, HP Unix, Linux.

Cascading port lets you connect additional KVM switches.

Pointing devices compatible with Microsoft Mouse are supported.

In the PC world, a wide XGA (WXGA) LCD refers to several modes of wide aspect ratios one of which supports 1280x768 pixels resolution. This gives you an approximately 16:10 aspect ratio display. Comparing WXGA to XGA's 1024x768 resolution, you get 25% more display area.

Widescreen LCD Monitor Rack Mount KVM Console with KVM Switches

The SMK-480WX17 is a KVM console featuring a widescreen, flip-up LCD monitor, keyboard, mouse in a space-saving clamshell design. The SMK-480WX17 is designed to be installed in a standard, 19-inch rack configuration. The LCD monitor flips up for use and folds down for storage. It includes a 8-port KVM switch for monitoring multiple computers from a single set of keyboard, monitor, mouse console.

Widescreen TFT LCD Provides More Display Area

The SMK-480WX17 console includes a high brightness, high contrast ratio, 17 inch widescreen flat panel LCD. Its 1280 x 768 pixels resolution provides approximately a 16:10 aspect ratio display. And with 600:1 contrast ratio, a level approaching that of CRT monitors, you can judge your work more accurately because subtle shades of color or gray in your graphic images become visible. The widesrceen LCD monitor provides more screen area for your applications. The WXGA display provides 25% more pixels than XGA resolution. The increased screen resolution has a direct impact on productivity, because now you can show more of your data, images, spreadsheet with less scrolling.

Short Depth Chassis Also Accomodates Wide Range of Rack Configurations

The entire KVM console is constructed of metal for ruggedness. The slide-out panel and keyboard tray is shipped with ball-bearing slide rails already attached to the unit. Rack mounting brackets can be extended from 20.0" up to 35.4" accomodating a wide range of equipment racks with different depth.

User friendly 8-port KVM switch

In a typical data center server racks consist of several different computer systems, it is important that they can be administered from a central console. This is where the KVM switch can prove invaluable, since it enables the keyboard, monitor and mouse to be switched between the various individual computers.

The SMK-480WX17 8-port KVM switch is a convenient solution for controlling multiple computers. The KVM switch lets you control up to 120 PCs or servers by support cascading of additional 8-port or 16-port KVM switches. The KVM switch supports hot plugging of systems and features auto-scanning of connected systems and systems on cascaded installations. It has an 8-character password security feature that ensures only authorized users can view and control connected PCs or servers. The convenient and easy-to-operate KVM switch controls all ports using hot-keys or the mouse-driven OSD (On-Screen Display) menus.

Lead Time

  • This item usually ships in approximately 2~3 days.
