Panel computer with touch screen LCD PPC-100 system integration

The panel computer PPC-100 is a series Intel® Pentium® 4 and Pentium® III based touch screen panel computers used as a friendly human-machine interface. The panel computer provides full PC functionality, multi-I/O and expansion capability, and touch screen LCD user interface. The panel computer accommodates a wide range of PC peripherals for a host of applications such as operator panel computers, information terminals, point-of-sales and point-of-service panel PCs.

Portable Computer

Touch Panel PC

Rack Console

Rack Mount LCD

Support

What's New

Industrial Panel PC

PPC-100 series Panel-mount PC with Touchscreen LCD

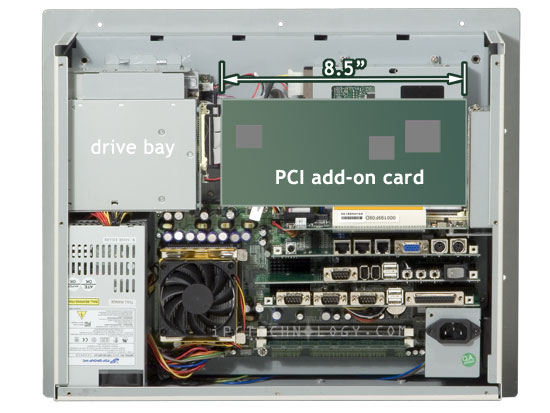

Add-on PCI Card Length Restriction

The PPC-100 has two open PCI card slots. The floppy/optical drive assembly prevents you from installing full-length cards in the expansion slots. Supported maximum card length is approximately 8.5".

panel computer workstation PPC-100 PCI slot

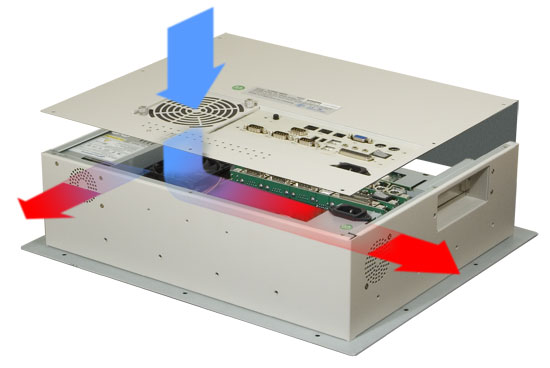

Leave Enough Space Around Air Vents

Air vents are located on three sides of the chassis. Because the CPU fan sits just behind the filtered air vents on the back side of the chassis, when PC-100 is installed in Kiosks or enclosures, be sure to leave enough room around the air vent openings to allow adequate air flow.

panel computer workstation PPC-100 air flow

Lead Time

  • PPC-100 with up to resistive touch screen usually ship in 2 weeks. SAW touch screen options will take approximately 7 more days.
