Open frame panel PC PPC-100 for touch screen computer interface

The PPC-100 open frame panel PC is a series of 17”/15” Intel® Pentium® 4 and Pentium® III based panel PC designed to serve as a friendly human-machine interface with full PC functionality, multi-I/O and expansion capability, and touch screen LCD user interface. It accommodates a wide range of PC peripherals for a host of applications such as open frame panel PC, operator panels, information terminal PCs.

Portable Computer

Touch Panel PC

Rack Console

Rack Mount LCD

Support

What's New

Industrial Panel PC

PPC-100 series Panel-mount PC with Touchscreen LCD

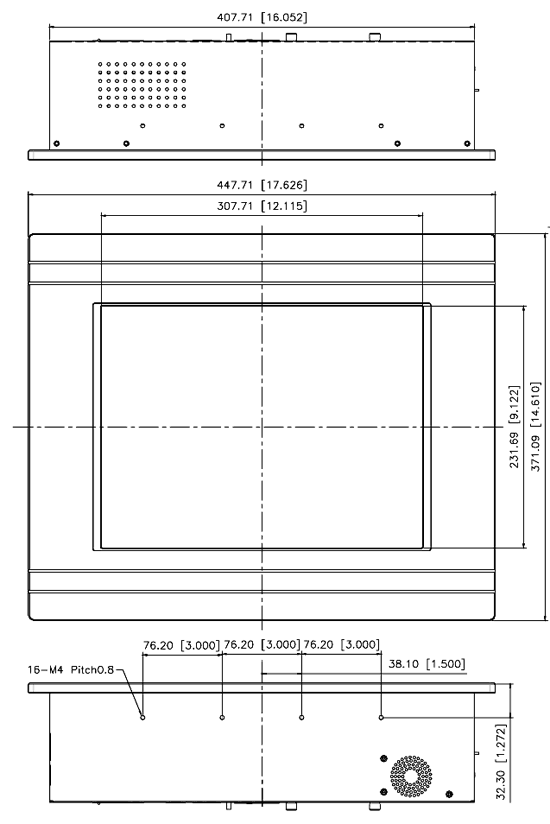

PPC-100 dimensional drawing for 15" model with aluminum bezel - top, front, bottom views

Dimensions in mm/[in]. Drawings for all models and bezel types are also available as downloads in the "Resources" page.

open frame panel PC PPC-100 drawings

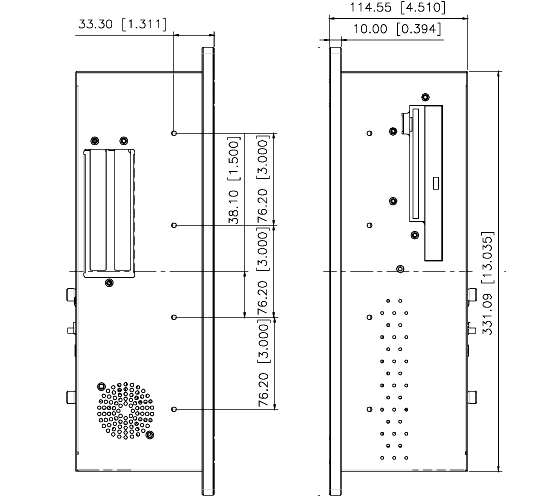

PPC-100 dimensional drawing for 15" model with aluminum bezel - side views

open frame panel PC PPC-100 drawings

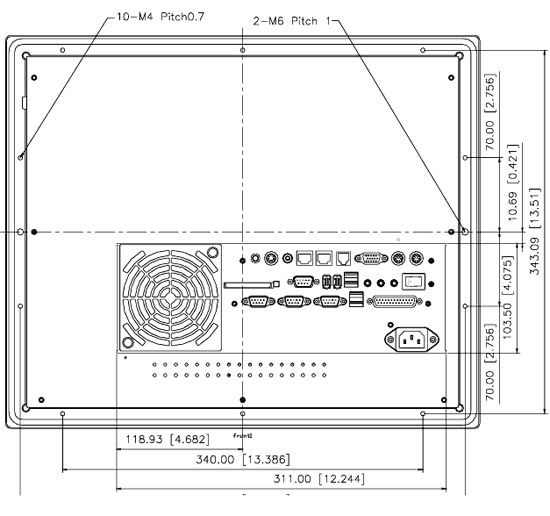

PPC-100 dimensional drawing for 15" model with aluminum bezel - back side view

open frame panel PC PPC-100 drawings

Lead Time

  • PPC-100 with up to resistive touch screen usually ship in 2 weeks. SAW touch screen options will take approximately 7 more days.
