Low cost, no frills LCD monitor keyboard rack console DKM-TX15M is a flat panel monitor console kit with slide-out keyboard shelf and flip-up LCD monitor, optical mouse included

The LCD monitor keyboard rack console DKM-TX15M delivers a convenient way to manage space-constrained, budget-sensitive rack environments. The flat panel monitor console kit provides a complete and ready-to-deploy solution, densely packaged, in just 1U rack space. The LCd monitor keyboard console kit includes a slide-out keyboard shelf, a flip-up LCD monitor and mouse in a space-saving clamshell design. Ball-bearing slide rails let you effortlessly slide-out the LCD monitor keyboard drawer to access the LCD and keyboard for operation. The LCD monitor flips up for use and folds down for storage. There is even a lock on the slide-out keyboard tray to prevent unauthorized access.

The flat panel monitor console has adjustable mounting brackets for multiple cabinet depths. DKM-TX15M LCD monitor keyboard is well suited for use in industrial conditions, in a data center, or on the factory floor.

Portable Computer

Touch Panel PC

Rack Console

Rack Mount LCD

Support

What's New

LCD Monitor Keyboard

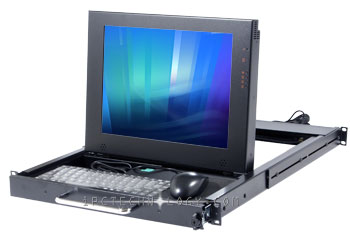

DKM-TX15M with 15" Flip-up LCD, Slide-out Keyboard Tray, Optical Mouse

15 inch industrial LCD monitor keyboard pull-out tray with mouse DKM-TX15M

The DKM-TX15M rackmount LCD monitor keyboard drawer is a 1U flat panel monitor console kit that delivers a convenient way to manage space-constrained, budget-sensitive rack environments. The flat panel monitor console provides a complete and ready-to-deploy solution, densely packaged, in just 1U of rack space and includes a high-quality 15 inch flat panel monitor, keyboard, slide-out keyboard shelf. This offering delivers a cost-optimized solution for rack-mounted servers. This ready-to-deploy solution provides simple setup, delivers ease of use and excellent ergonomics. It includes a PS/2-based U.S. keyboard.

When it comes to navigating in a graphical user inteface, a mouse offers much better point-and-click precision than a touchpad pointing device.

The monitor keyboard shelf has a mouse pad and a convenient storage compartment for the included optical mouse.

The entire unit is constructed of metal for ruggedness. With adjustable mounting brackets it can be installed in multiple cabinet depths. The unit is mounted on ball-bearing slide rails so you can easily slide it out of your equipment rack. The LCD monitor flips up for use and folds down for storage.

The unit's power supply is an externally attached AC/DC adapter on the back of the enclosure. The adapter can be easily detached in the event that it needs to be replaced.

The DKM-TX15M has a 15" XGA resolution screen. The LCD's lower power consumption and EMI free technology makes it ideal for industrial applications. Front-panel-mounted control buttons lets you access the on-screen display (OSD) menu to adjust the display for optimum viewing.

Lead Time

  • This item is currently out of stock. Please call for availability.
