DKM-TX15 monitor keyboard mouse rack console is a low cost, no frills flat panel monitor console kit with pull-out keyboard tray and flip-up LCD monitor

The monitor keyboard mouse rack console DKM-TX15 delivers a powerful and convenient way to manage space-constrained, budget-sensitive rack environments. The monitor keyboard mouse rack console provides a complete and ready-to-deploy solution, densely packaged, in just 1U rack space. The flat panel monitor console kit includes a slide-out keyboard tray, a flip-up LCD monitor and mouse in a space-saving clamshell design. Ball-bearing slide rails let you effortlessly pull out the LCD monitor keyboard drawer to access the LCD and keyboard for operation. The LCD monitor flips up for use and folds down for storage. There is even a lock on the pull-out keyboard tray to prevent unauthorized access.

The monitor keyboard mouse rack console has adjustable mounting brackets for multiple cabinet depths. DKM-TX15 monitor keyboard mouse, rack console is well suited for use in industrial conditions by virtue of its rugged metal enclosure and its key lock security to prevent unauthorized access in a data center or on the factory floor.

Portable Computer

Touch Panel PC

Rack Console

Rack Mount LCD

Support

What's New

LCD Monitor Keyboard Mouse Rack Console

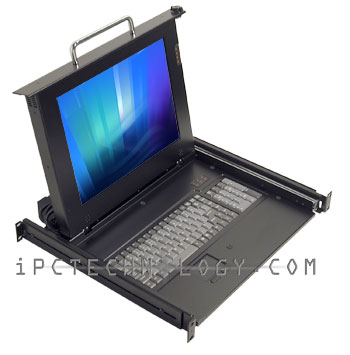

DKM-TX15 with 15" Flip-up LCD Monitor, Pull-out Keyboard Tray

monitor keyboard mouse rack console DKM-TX15

The DKM-TX15 monitor keyboard mouse is a 1U flat panel monitor console kit that delivers a convenient way to manage space-constrained, budget-sensitive rack environments. The flat panel monitor console provides a complete and ready-to-deploy solution, densely packaged, in just 1U of rack space and includes a high-quality 15 inch flat panel monitor, keyboard, keyboard tray. This offering delivers a cost-optimized solution for rack-mounted servers. This ready-to-deploy solution provides simple setup, delivers ease of use and excellent ergonomics. It includes a PS/2-based U.S. keyboard.

The entire flat panel monitor console is constructed of metal for ruggedness. At just over 17" in depth, you can fit the unit in short-depth cabinets. With adjustable mounting brackets that can be extended from 16.4" up to 30", it will also accomodate multiple cabinet depths. The flat panel monitor console, keyboard tray is mounted on ball-bearing slide rails so you can easily pull it out of your equipment rack. The LCD monitor flips up for use and folds down for storage.

The unit's power supply is an externally attached AC/DC adapter on the back of the enclosure. The adapter can be easily detached in the event that it needs to be replaced.

The DKM-TX15 rackmount flat panel monitor console kit has a 15" XGA resolution LCD screen. The LCD's lower power consumption and EMI free technology makes it ideal for industrial applications. Front-panel-mounted control buttons lets you access the on-screen display (OSD) menu to adjust the display for optimum viewing.

Lead Time

  • This item usually ships in approximately 2~3 days.
