Console KVM DKM-SX17M is a rack console kit in a pull-out rackmount console kvm drawer design

The DKM-SX17M console kvm is a 1U console kit with a combination of a flip-up LCD monitor, pull-out keyboard tray and mouse in a space-saving clamshell design. The console kvm drawer is mounted on ball-bearing slide rails letting you effortlessly pull out the keyboard tray to access the flip-up LCD and keyboard for operation. The console kvm drawer has a lock on the pull-out keyboard tray to prevent unauthorized access.

Each rack console kit includes an external power supply. The console kvm drawer is well suited for use in industrial conditions such as data centers or the factory floor.

Portable Computer

Touch Panel PC

Rack Console

Rack Mount LCD

Support

What's New

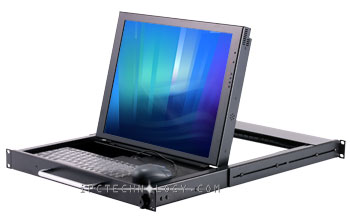

Rackmount Console KVM Drawer with 17" LCD

DKM-SX17M Flip-up LCD Monitor, Pull-out Keyboard Tray with Optical Mouse

17 inch SXGA industrial LCD monitor keyboard and optical mouse in a pull-out drawer DKM-SX17M

The DKM-SX17M console KVM with mouse is a rack-mountable pull-out tray that occupies only 1 rack unit space. Using a flip-up LCD monitor design, the DKM-SX17M console kit offers a space-saving solution to server management with three frequently used peripheral devices of a typical data center—monitor, keyboard and mouse.

When it comes to navigating in a graphical user inteface, a mouse offers much better point-and-click precision than a touchpad pointing device.

The monitor keyboard drawer has a mouse pad and a convenient storage compartment for the included optical mouse.

The console KVM drawer is mounted on slide rails so you can easily pull the unit out of your equipment rack. The LCD monitor flips up for use and folds down for storage. The console kit comes with an external AC/DC adapter power supply attached on the back of the unit. The adapter can be easily detached in the event that it needs to be replaced.

The DKM-SX17M console KVM drawer includes a 17" SXGA high resolution screen. The LCD's lower power consumption and EMI free technology makes it ideal for industrial applications. And with its opyimum resolution of 1280 x 1024 pixels, you can work more and scroll less, because you can put more information on screen instead of cluttering it with menus and tool bars. An on-screen display (OSD) menu using four front-panel-mounted control buttons let's you adjust the display for optimum viewing.

The entire console KVM drawer is constructed of metal for ruggedness. The ball-bearing slide rails has mounting brackets that can be extended from 25 " up to 30" to accomodate a wide selection of equipment racks.

Lead Time

  • This item is currently out of stock. Please call for availability.
