CompactPCI Portable Computer
CPCI-3369 Controller with Intel® Pentium® M Processor

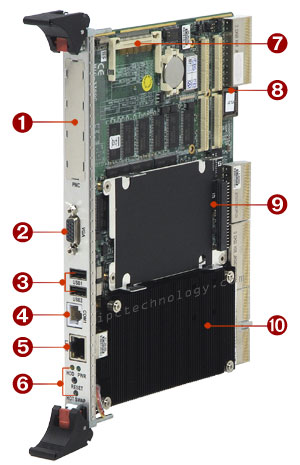

- PCI messanine card knockout.
- VGA connector (DB-15).
- Two USB 2.0 ports.
- Serial port (COM1, RJ-45)
- Ethernet port (10/100/1000 mbps, RJ-45).
- Status indicator LEDs (hdd, power, reset, hot-swap).
- CompactFlash socket.
- PCI Mezzanine Card sockets.
- IDE interface; hard drive tray for a 2.5" hard disk drive.
- Passive CPU heatsink for u-FCPGA socket Intel Pentium M processor.
The CPCI-B3369 is a cost-effective CompactPCI single board computer (SBC) based on the IntelŪ PentiumŪ M processor. It is an ideal application blade for integration into the CPCI-6615 cPCI chassis for a high-performance and low-power consumption portable solution. It makes extensive use of Intel's latest I/O controller hub technology and provides 64-bit data buses throughput. The on-board dual Gigabit Ethernet controller is connected via a 64-bit/133 MHz PCI-X bus for maximum sustained packet throughput. In addition to a full array of industry standard I/O features including on-board 2.5" hard disk drive and two USB ports, the 3369C also provides one 64-bit/66 MHz PMC site for on-board I/O expansion making it ready to meet the most flexible and demanding I/O processing needs.
The 3369C can be used in either a system slot or peripheral slot, making it an ideal choice for applications requiring PICMG 2.16 Packet Switched Backplane support for Gigabit speed switched-fabric interconnection between blades. The board is designed in compliance with the PICMG 2.9 specification to cooperate with remote system and platform management modules.
The CPCI-B3369 supports IntelŪ PentiumŪ M 745 processor @ 2.0 GHz and PentiumŪ M processor @ 1.6GHz with the u-FCPGA package. The Intel Pentium M 745 processor has 2 MB L2 cache and Pentium M 1.6GHz processor has 1MB L2 cache providing high performance. With the support of a 400MHz front side bus, the CPCI-B3369 can fulfill customer's expectations of high-performance computing capability.
The CPCI-B3369 ocupies only one-slot width. Its CPU heat sink was specially designed for the IntelŪ PentiumŪ M processor, enabling the CPCI-B3369 to operate without a cooling fan on the heat sink. It only needs external cooling air from the chassis fans for ventilation.
- Intel Pentium M Processor cPCI SBC Specifications
- Standards Compliance
- PICMG 2.0, R3.0 CompactPCI Specification
PICMG 2.1, R2.0 Hot-Swap Specification
PICMG 2.16, R1.0 Packet Switching Backplane Specification - Operating System Compatibility
- Windows 2000/NT 4.0/XP, Red Hat Linux 9.0, VxWorks
- Processor
- Intel® Pentium® M processor (Socket 479), up to 2.0 GHz
1 MB L2 Cache on 1.6 GHz CPU or 2 MB on 2.0 GHz CPU
Intel® E7501/ICH4 Chipset
Award 4 Mbit Flash BIOS(By request: Network booting/Console redirect)
400/533 MHz Front Side Bus - PCI BUS
- 64-bit/133 MHz (PCI-X support)
- Memory
- DDR-200/266 SDRAM with ECC support, up to 2 GB max. capacity
On-board memory 512 MB/1 GB/2 GB (no user upgradable memory sockets) - Graphics Controller
- ATI RageXL with 8 MB VRAM on board
- LAN
- Front panel RJ-45 connector for 10/100/1000Base-TX ethernet LAN
IntelŪ 82546GB (Dual GbE ports) controller - EIDE Interface
- Dual channel Parallel ATA 33/66/100 interface
One IDE connector and space reserved for embedded 2.5" HDD - PCI-to-PCI Bridge
- Hint HB6 controller supporting system/drone mode capability
64-bit/66 MHz bus - Front Panel I/O
- One PCI Mezzanine Card knockout
One DB-15 VGA connector
Two USB 2.0 connectors
One RJ-45 connector for serial port COM1
One RJ-45 connector for Gigabit LAN - Hardware Monitor
- Winbond W83782D controller monitoring CPU temperature, 3.3 V/5 V/12 V
- Watchdog Timer
- Output: interrupt, system reset, NMI
Programmable interval 0 ~ 255 sec. - PCI Mezzanine Card
- One PMC site with 64-bit/66 MHz PCI Mezzanine (IEEE1386.1) interface
+5 V/+3.3 V compliant signal - Solid State Storage
- One CompactFlash socket
- Environmental Specifications
- Temperature: operating 0 ~ 55° C (32 ~ 131° F); non-operating -40 ~ 70° C (-40 ~ 158° F)
Humidity: non-operating 95 % @ 60° C (non-condensing)
Shock: operating 20 G; non-operating 50 G
Vibration (5-500 Hz): operating 1.5 Grms; non-operating 2.0 Grms
Altitude: 60m below sea level to 4000m above sea level
Airflow 300 LFM = 1.54 m/s - Power Requirement
- Max current @ given voltages for an IntelŪ PentiumŪ M 1.6 GHz CPU:
+3.3 V 5.18 A
+5 V 4.19 A
+12 V 38 mA
-12 V < 25 mA - Physical Characteristics
- Dimensions: 9.2" x 6.3", 1-slot width
Weight: 1.76 lbs.
