PPC-110 sereis Panel PC with touch screen LCD

The PPC-110 is a IP-65 rated and RoHS compliant industrial panel PC with touch screen LCD monitor. Designed to serve as a friendly human-machine interface (HMI)for easy integration into any space-constricted embedded applications, the PPC-110 industrial panel PC provides full PC functionality. Multi-I/O and expansion capability lets the PPC-110 panel PC interface with other applications. The PPC-100 panel PC supports touch screen LCD for user interface. It accommodates a wide range of PC peripherals for a host of applications such as operator panel PC, information panel computer terminals, point-of-sales and point-of-service panel mount PC.

Industrial Panel PC

PPC-110 series RoHS Panel PC with Touch Screen LCD

Intel Pentium 4-based model

touch screen panel workstation PPC-100

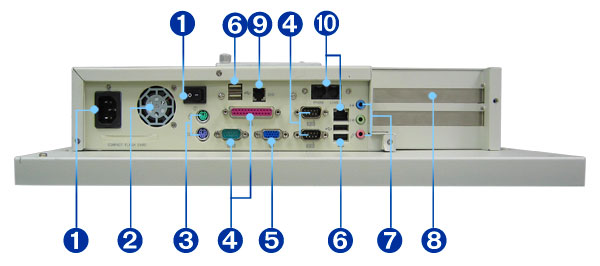

  1. AC input; Power on/off switch.
  2. Coolin fan.
  3. Keyboard and mouse ports (PS/2).
  4. Three RS-232 serial ports; one parallel port.
  5. VGA port.
  6. 4 USB 2.0 ports.
  7. Audio sockets (speaker-out, line-in, mic-in).
  8. PCI slots.
  9. Digital I/O port (RJ-11).
  10. RJ-11 Phone and Line inputs for modem; RJ-45 ethernet port.
