Panel mount touch screen computer, panel PC, and panel workstation

The PPC-100 is a series of 17”/15” Intel® Pentium® 4 and Pentium® III based panel PC, panel computer, panel workstation designed to serve as a friendly human-machine interface for easy integration into any space-constricted embedded applications. It provides full PC functionality, multi-I/O and expansion capability, and touch screen LCD user interface. It accommodates a wide range of PC peripherals for a host of applications such as operator panels, information terminals, point-of-sales and point-of-service PCs.

Industrial Panel PC

PPC-100 series Panel-mount PC with Touchscreen LCD

Intel Pentium 4-based model

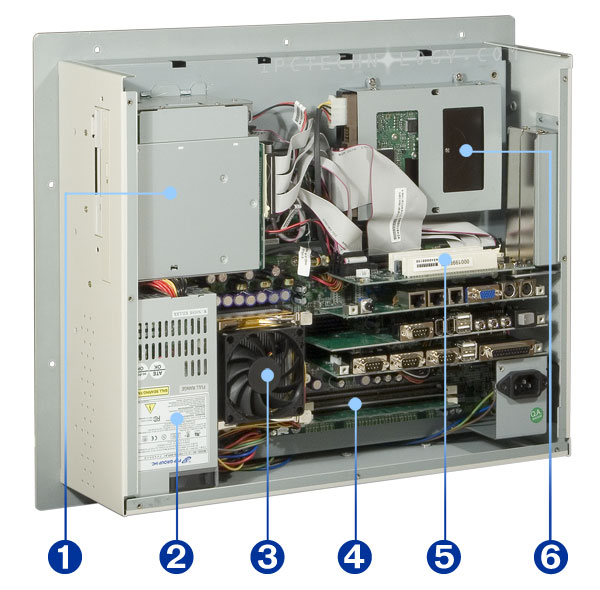

panel PC PPC-100 back side view
  1. Drive bays for floppy and optical drives.
  2. Power supply.
  3. CPU cooling fan.
  4. Main memory (photo shows Pentium 4-based system with two 184-pin DDR SDRAM sockets; Pentium III has one 168-pin socket).
  5. Two PCI expansion slots via riser card.
  6. Internal 3.5" hard drive bay.
