Widescreen LCD monitor keyboard drawer rack console

The family of widescreen LCD SMK420 rack console lets you monitor rackmount server using a single monitor keyboard mouse. Widescreen LCD monitor features a 17 inch, 16:10 aspect ratio, 1280 x 768 pixels resolution flat panel LCD monitor. The widesrceen LCD monitor provides more screen area for your applications. The WXGA resolution at 1280 x 768 pixels provides 25% more pixels than XGA resolution. SMK-420 monitor keyboard rack console is a 1U slide-out monitor keyboard drawer that provide a combination of a flip-up LCD monitor, keyboard, mouse in a space-saving clamshell design.

Wide Screen LCD Monitor Keyboard Drawer Rack Console

SMK-420WX17 with 16:10 WXGA 17-inch Flip-up LCD and Slide-out Keyboard Tray

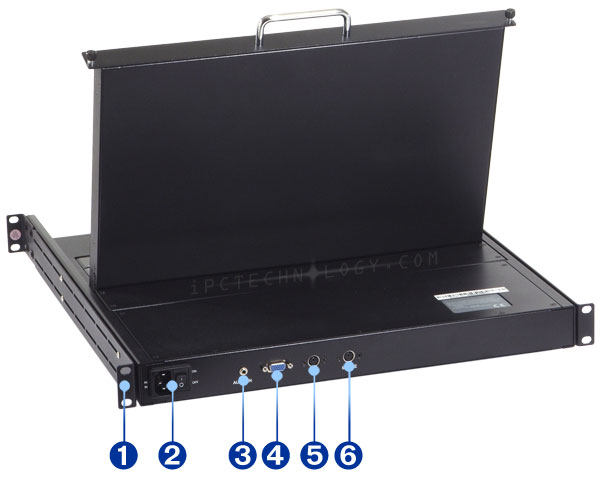

widescreen LCD monitor keyboard rack console SMK-420 series
  1. Adjustable rear mounting flange extension.
  2. AC input and power on/off switch.
  3. 3.5mm stereo audio input jack.
  4. DB-15 VGA connector.
  5. 6-pin Mini-DIN mouse connector.
  6. 6-pin Mini-DIN keyboard connector.
