Keyboard Video Mouse Console Switch with LCD

DMK-580S17 KVM Console Switch with 17" Flip-up LCD in a Dual Rail, Slide-out Rackmount Drawer

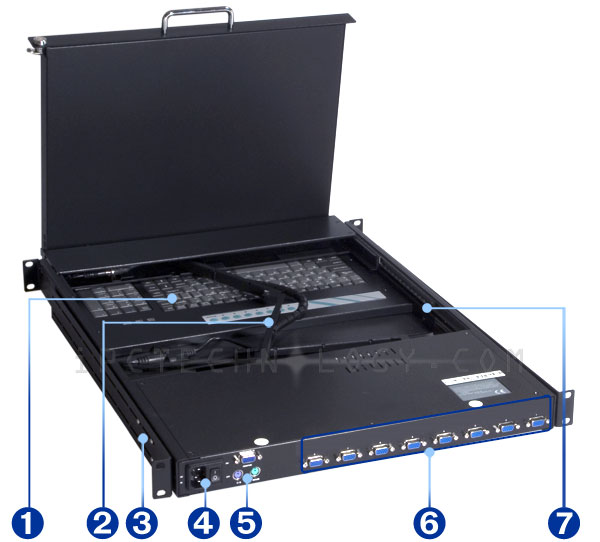

dual rail DMK580 8-port KVM switch rack console back side details image
  1. Keyboard in slideaway position.
  2. Cable guides.
  3. Adjustable rear bracket extension piece.
  4. AC input, power on/off switch.
  5. Daisy chain KVM connectors (15-pin VGA, 6-pin Mini-DIN keyboard and mouse connectors).
  6. 8 DB-15 connectors to switched computers (each included cable has DB-15 connector on console side, separate DB-15 VGA, 6-pin Mini-DIN keyboard and mouse connectors on computer side).
  7. Slide rails for flat panel (upper rail) and keyboard tray (lower rail).
