Industrial PC Enclosure
With integrated LCD Monitor

Product Views

IPC enclosure

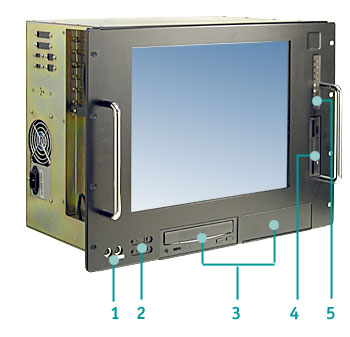

Front panel view

  1. 6-pin mini-DIN keyboard and mouse sockets.
  2. Two USB connectors
  3. Two 5.25" drive bays.
  4. One 3.5" drive bay.
  5. System status and LCD monitor OSD (on-screen menu display) controls.



IPC enclosure

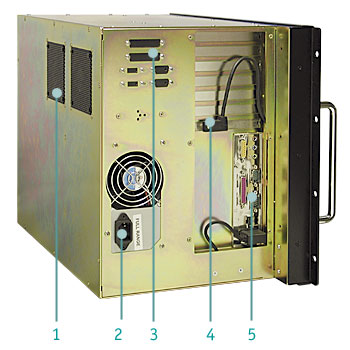

Connector-side and back view

  1. Two exhaust fans.
  2. Power supply AC input connector.
  3. DB-25, DB-9, USB connector cut-outs.
  4. 15-pin video cable and connector.
  5. I/O connectors of an installed ATX form-factor motherboard.



IPC enclosure

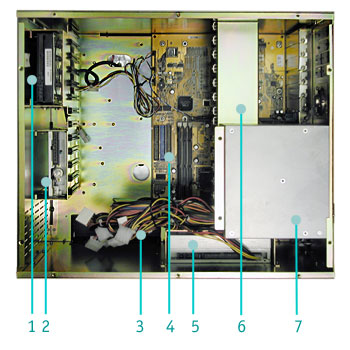

Open-back view of internal component layout for ATX enclosure

  1. Internal 3.5" drive bay.
  2. Externally accessible 3.5" drive bay.
  3. Externally accessible 5.25" drive bay.
  4. ATX Motherboard.
  5. Externally accessible 5.25" drive bay.
  6. Height adjustable add-on card stabilizer.
  7. Power supply.
