Industrial PC Enclosure
With integrated LCD Monitor

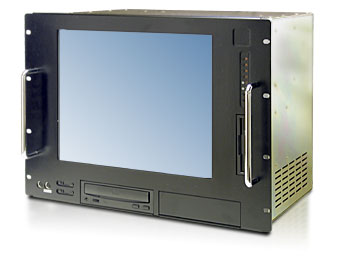

Industrial PC with integral 15.4" or 17" 1280 x 1024 resolution LCD monitor.

Spacious enclosure supporting single and dual processor systems boards. ATX or 14-slot passive backplane form factors.

8U rack-mount construction.

Offering raw processing power, ruggedness and connectivity to the rest of your business, IPC-SX17, IPC-SX15 are a self-contained, rackmountable computer with an Intel processor-based system architecture and its own high resolution TFT LCD monitor. They provide a powerful platform for industrial computing applications with room for expansion.

The series is designed for rack mounting. A spacious 8U rack units high (19" W x 14" H) rack-mountable metal chassis contains the system board, disk drives for data storage, and a flat panel display. Available mounting hole patterns for ATX, extended ATX and passive backplanes let you outfit the chassis with a wide range of motherboards and backplanes up to 14 slots. All slots accomodate full-length expansion cards. Each card is secured in place by a special card retaining clamp.

Standard system configuration includes an ATX or extended ATX form factor motherboard that supports single or dual processors. This configuration offers the cutting edge of PC technology such as Intel Pentium 4 and Xeon processors, USB 2.0, Serial ATA and Ultra320 SCSI peripheral device interfaces, AGP 8X video and 64-bit PCI bus.

If your applications require support for legacy bus add-on cards such as ISA cards, then the passive backplane-based configuration may be a better choice. Using a single board computer (SBC) installed in a 14-slot passive backplane, you can tap the power of Intel Pentium III or Pentium 4 processor and still have ISA, PCI slots for your add-on cards. Since the SBC comes as a plug-in card, system maintenance takes less time.

The integral LCD provides an EMI free display as well as lower power consumption and sharper, brighter, and more vivid images for all your applications. Both the 15.4" and 17" LCDs have a native resolution of 1280 x 1024 pixels (SXGA resolution). An on-screen display (OSD) menu let's you adjust the display for optimum viewing.
