DKM-HD17 short-depth rack console is a rackmount drawer that combines a wide screen LCD monitor, keyboard in a slide-out drawer design

DKM-HD17 rack console kit uses a space-saving clamshell design. The keyboard video mouse is mounted on ball-bearing slide rails letting you effortlessly pull out the monitor keyboard to access the flip-up LCD and keyboard for operation. The LCD monitor flips up for use and folds down for storage.

Wide screen 17.3 inch LED backlight LCD offers full HD resolution. The monitor keyboard is well suited for use in industrial conditions such as data centers or the factory floor by virtue of its rugged metal enclosure.

Short-depth Rack Console with 17.3" 1920x1080 LCD

DKM-HD17 supports both PS/2 and USB Input Device Interfaces

LCD monitor keyboard mouse model DKM-HD17

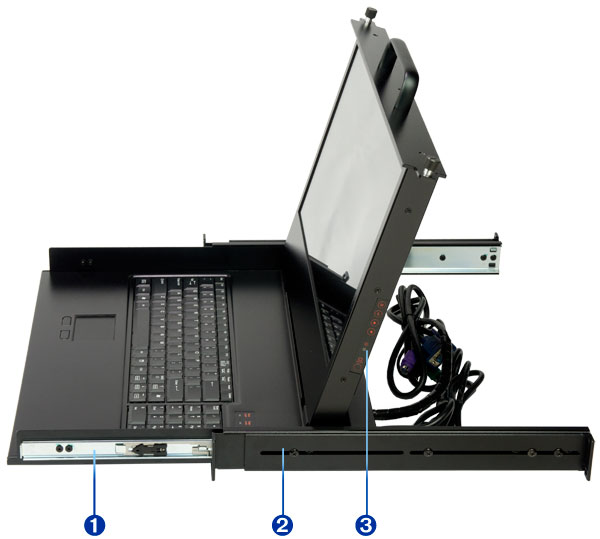

  1. Detachable slide rails.
  2. Using an adjustable rear bracket, the mounting brackets extends from 14.5" to 24.5".
  3. LCD monitor OSD control buttons, monitor on/off switch.
