Rack mount LCD console drawer with 8 port keyboard video mouse switches and 19 inch LCD monitor

SMK-580S19 with 8-port keyboard video mouse switches and a 19 inch, high contrast ratio, fast response, wide viewing angles LCD monitor enables you to control large computer networks using a single keyboard, monitor and mouse.

SMK-580S19 is a 1 rack unit, rackmount, slide-out keyboard drawer that provide a combination of a flip-up LCD monitor, keyboard, and 8-port keyboard video mouse switch in a space-saving clamshell design. Ball-bearing slide rails let you effortlessly pull out the keyboard tray to access the LCD and keyboard for operation. The LCD monitor flips up for use and folds down for storage.

Keyboard Monitor Switch with 19" LCD Monitor

SMK-580S19 Rack Console, 8-Port Keyboard Monitor Mouse Switch

keyboard monitor switch SMK-580S19 keyboard monitor mouse switch with 19 inch LCD monitor

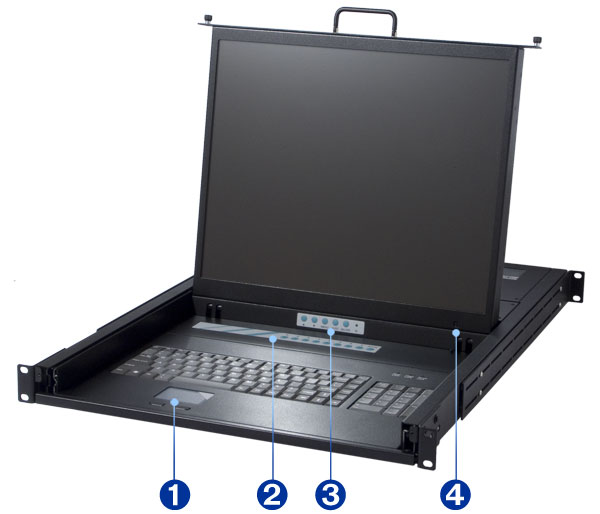

  1. Two button touchpad mouse.
  2. PC selector buttons of the 8-port KVM switch and selector button for daisy-chained KVM switches.
  3. LCD adjustment controls for on-screen-display menu; LCD backlight on/off switch to prolong LCD's service life; KVM status indicator LED.
  4. LCD backlight on/off momentary switch. Turns off LCD backlight when panel is folded down to prolong LCD service life.
