Rack mount LCD console drawer with 8 port keyboard video mouse switches and 19 inch LCD monitor

SMK-580S19 with 8-port keyboard video mouse switches and a 19 inch, high contrast ratio, fast response, wide viewing angles LCD monitor enables you to control large computer networks using a single keyboard, monitor and mouse.

SMK-580S19 is a 1 rack unit, rackmount, slide-out keyboard drawer that provide a combination of a flip-up LCD monitor, keyboard, and 8-port keyboard video mouse switch in a space-saving clamshell design. Ball-bearing slide rails let you effortlessly pull out the keyboard tray to access the LCD and keyboard for operation. The LCD monitor flips up for use and folds down for storage.

Keyboard Monitor Switch with 19" LCD Monitor

SMK-580S19 Rack Console, 8-Port Keyboard Monitor Mouse Switch

keyboard monitor switch SMK-580S19 with 19 inch LCD monitor and 8-port keyboard monitor mouse switches

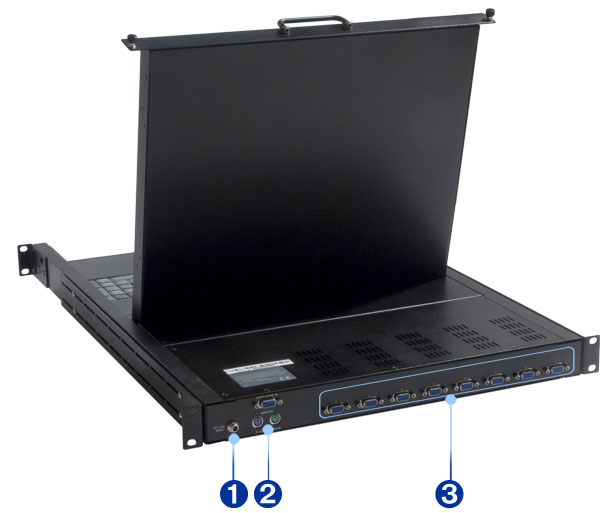

  1. DC input from externally attached AC adapter power supply.
  2. Connectors (15-pin VGA, 6-pin Mini-DIN keyboard and mouse connectors) for cascading KVM switch.
  3. 8 sets of DB-15 connectors for rack console and switched computers.
