Keyboard mouse switch with LCD monitor, keyboard, and 8 port keyboard monitor mouse switch

SMK-580 keyboard monitor switch, rack console enables you to control large computer networks using a single keyboard, monitor and mouse. The 8-port keyboard monitor mouse switch use an on-screen display (OSD) interface and pushbuttons on the keyboard for accessing each KVM switched computer. Additional keyboard monitor switches can be daisy chained, to increase computer access.

SMK-580 series keyboard monitor switch, rack console is a 1U slide-out keyboard tray that provide a combination of a flip-up LCD monitor, keyboard, and 8-port keyboard monitor mouse switch in a space-saving clamshell design. Ball-bearing slide rails let you effortlessly pull out the keyboard tray to access the LCD and keyboard for operation. The LCD monitor flips up for use and folds down for storage.

Keyboard Monitor Switch with 17" LCD Monitor

SMK-580S17 Rack Console, 8-Port Keyboard Monitor Mouse Switch

keyboard monitor switch SMK-580 keyboard monitor mouse switch with LCD monitor

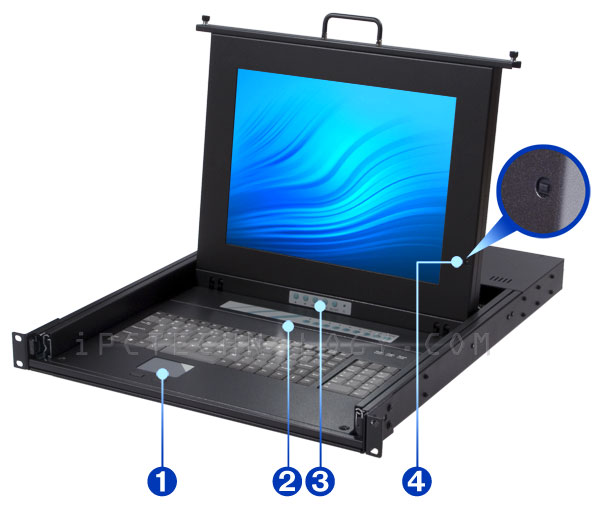

  1. Two button touchpad mouse.
  2. PC selector buttons of the 8-port KVM switch, selector button for daisy-chained KVM switch.
  3. LCD adjustment controls for on-screen-display menu; LCD backlight on/off switch to prolong LCD's service life; KVM status indicator LED.
  4. LCD backlight on/off momentary switch. Turns off LCD backlight when panel is folded down to prolong LCD service life.
