KVM console DMK-590 is a 16-port KVM switch with a flip-up LCD monitor, slide-out keyboard tray. It has dual slide rails for independent extraction of the monitor and keyboard

DMK590 KVM switch enables you to control your rackmount servers using a single keyboard, monitor, and mouse. The KVM switch has a dual-rail design that represents an intelligent use of rack space.

The DMK590 KVM switch enables you to control large computer networks using a single keyboard, monitor, and mouse. The 16-port KVM switch uses an On-Screen Display (OSD) interface and pushbuttons on the keyboard for accessing each attached computer. Daisy chaining KVM console switch units allows you to modify your Server Console Switch system, as your network system needs change.

The DMK-590S17 is no longer available

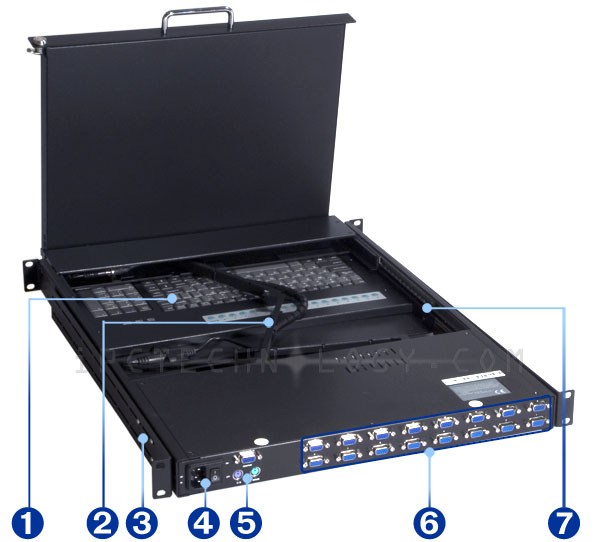

keyboard video mouse switch SMK590 with LCD monitor keyboard drawer
  1. Keyboard in slideaway position.
  2. Cable guides.
  3. Adjustable rear bracket extension piece.
  4. AC input, power on/off switch.
  5. Daisy chain KVM connectors (15-pin VGA, 6-pin Mini-DIN keyboard and mouse connectors).
  6. 16 DB-15 connectors to switched computers (each included cable has DB-15 connector on console side, separate DB-15 VGA, 6-pin Mini-DIN keyboard and mouse connectors on computer side).
  7. Slide rails for flat panel (upper rail) and keyboard tray (lower rail).
