Point-of-service desktop, panel mount, panel PC, touch screen PC input and output ports

The PPC-1000 is a series of 15” Intel® Pentium® 4 and Pentium® III based industrial panel PC and touch screen PC designed to serve as a friendly human-machine interface for easy integration into any point-of-service PC applications. It's designed as a desktop free standing touchscreen PC terminal or panel mount PC and swivel-arm-mount PC. The PPC-1000 panel PC, touch screen PC provides full PC functionality, multi-I/O and expansion capability, and touch screen LCD user interface. It accommodates a wide range of PC peripherals for a host of applications such as operator panels, information terminals, point-of-sales and point-of-service computer.

PPC-1000

This Is An End-Of Life Product

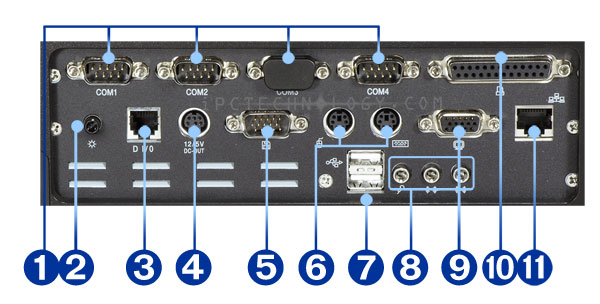

I/O panel of an Intel® Pentium® III-based system

touch screen pc, panel pc PPC-1000 input output ports view
  1. COM ports (COM3 connected internally to the touch screen).
  2. LCD brightness VR control.
  3. Digital I/O (RJ-11).
  4. DC-out (12/5 VDC).
  5. External floppy disk drive port.
  6. Keyboard and mouse ports (mini-DIN 6-pin).
  7. 2 USB 1.0 ports.
  8. Audio I/O (speaker, line-in, mic-in).
  9. VGA port for external monitor.
  10. Parallel port (DB-25).
  11. Ethernet port (RJ-45).
