MPC-2900 Rugged Portable Workstation

20" IPS LCD and Dual Multi-core Processors

rugged lunchbox portable workstation MPC-3900 with dual processor, 20 inch UXGA LCD screen

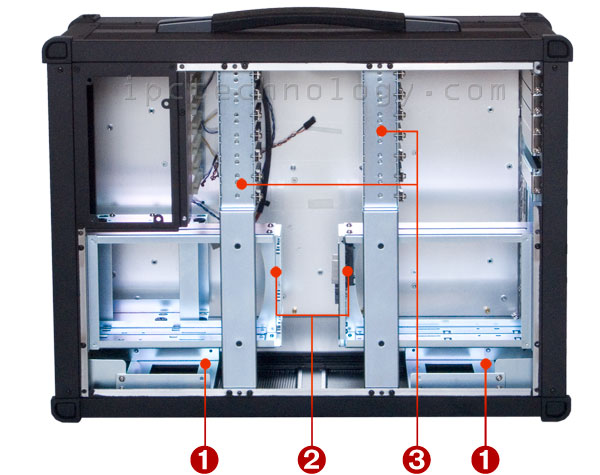

MPC-2900 back side view with back cover removed.

  1. Drive spaces for two 5.25" disk drives - optical disk drive or removable drive carrier.
  2. Four drive carriers for 3.5" disk drives - select SATA or SCAI backplane.
  3. Drive carrier and add-on card stabilizers.
rugged lunchbox portable workstation MPC-3900 with dual processor, 20 inch UXGA LCD screen

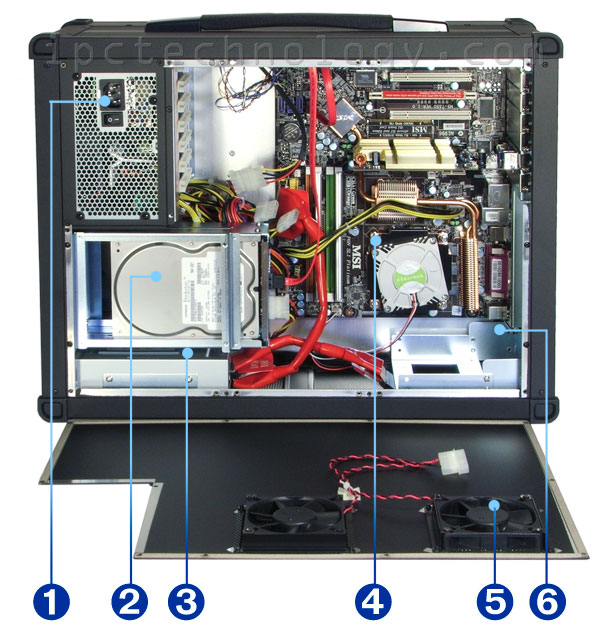

MPC-2900 back side view with components.

  1. ATX power supply for 110~240 VAC 50~60Hz input.
  2. Hard disk drive installed in its removable drive carrier.
  3. A DVD-RW disk drive installed in the 5.25" drive bay.
  4. Motherboard mounting space supporting micro-ATX, ATX, and Extended ATX form factors.
  5. Cooling fans mounted on the back cover.
  6. Extra drive space supporting two removable 3.5" hard disk drive carriers and one 5.25" drive (not shown).
