CPCI-6615 Is No Longer Available

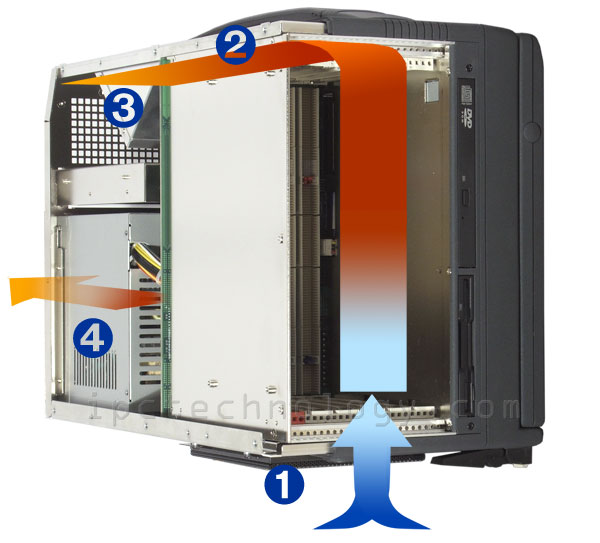

- Bottom fan with EMI mesh cover and filter - combination of fans (1) and (3) generate
most of the internal air flow. These fans draw air through the bottom filter and up
through the 6-slot convection area and into the horizontal air duct (2).
- Air flows through the air duct into the exhaust area.
- Exaust fan at the exhaust area flushes the warm air out through the side vents.
- Power supply vents and fan also aids in moving the warm air out of the enclosure.
